2563360 Series

Catalog

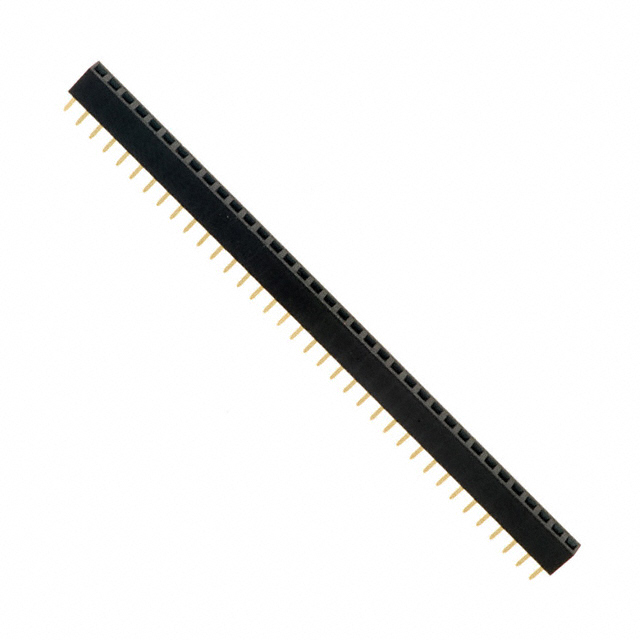

25633601RP2 ROHS COMPLIANT: YES

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Number of Positions	Fastening Type	Material Flammability Rating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Number of Rows	Contact Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Termination	Insulation Color	Mounting Type	Contact Finish - Post	Connector Type	Insulation Height	Insulation Height
NorComp Inc. 25633601RP2	-40 C	105 ░C	Square	100 µin	2.54 µm	Phosphor Bronze	36	Push-Pull	UL94 V-0	All	0.079 "	2 mm	Gold	1	Female Socket	2.5 mm	0.098 in	Flash	Solder	Black	Through Hole	Tin	Receptacle	4.3 mm	0.169 "
