CH1NBB Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH PB SPDT 1A 125V
| Part | Electrical Life | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Circuit | Voltage Rating - DC | Termination Style | Actuator Marking | Mounting Type | Panel Cutout Dimensions [diameter] | Illumination Type, Color | Color - Actuator/Cap | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

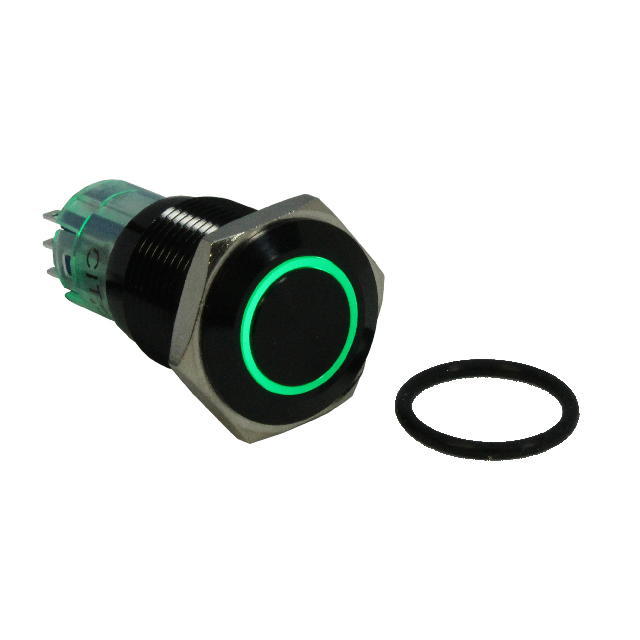

 CIT Relay and Switch | 30000 Cycles | 1 A | 125 V | On-Mom | Button Flush Round | -25 °C | 70 °C | IP67 - Dust Tight Waterproof | SPDT | 24 V | Solder Lug | No Marking | Panel Mount Front | 16 mm | Green LED | Black | Anti-Vandal Illuminated |

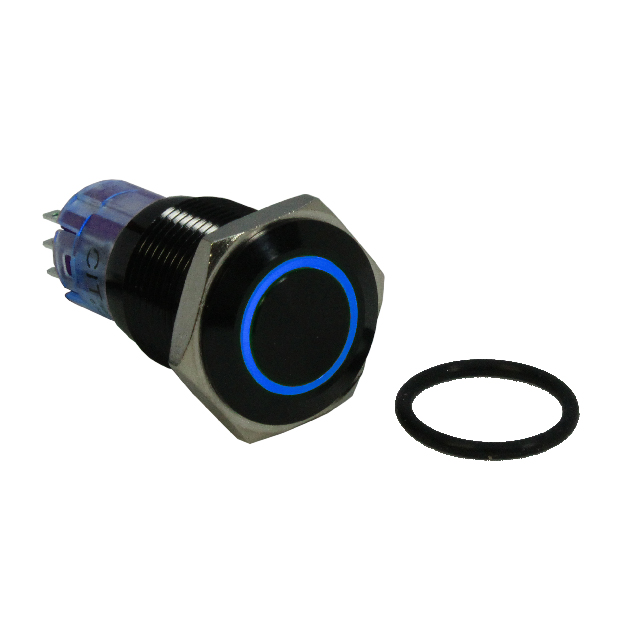

 CIT Relay and Switch | 30000 Cycles | 1 A | 125 V | On-Mom | Button Flush Round | -25 °C | 70 °C | IP67 - Dust Tight Waterproof | SPDT | 24 V | Solder Lug | No Marking | Panel Mount Front | 16 mm | Blue LED | Black | Anti-Vandal Illuminated |
