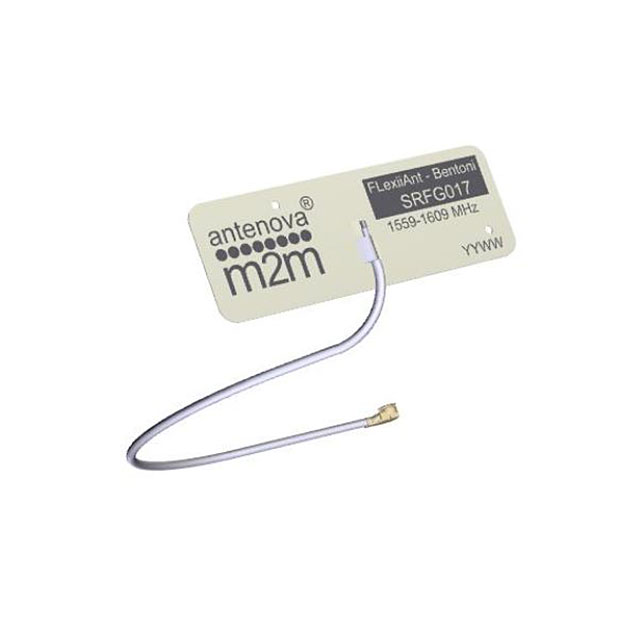

SRFG017 Series
Manufacturer: Antenova
Beta
⌘K
ANTENNA GNSS -1.2DBI GAIN 1609MHZ BAG
| Part | Termination | Termination | Features | Return Loss | Mounting Type | Frequency Range [Min] | Frequency Range [Max] | RF Family/Standard | Number of Bands | Antenna Type | Height (Max) [z] | Height (Max) [z] | Frequency Group [Max] | Frequency Group [Min] | Frequency Group | Frequency (Center/Band) | Gain | VSWR | Applications | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Antenova | IPEX MHF1 | I-PEX MHF1 U.FL (UMCC) | Cable - 50mm | -14 dB | Adhesive | 1.559 GHz | 1.609 GHz | Navigation | 1 | Flat Patch | 0.15 mm | 0.006 in | 2 GHz | 1 GHz | UHF | 1.561 GHz 1.575 GHz 1.602 GHz | 4 dBi | 1.45 | BeiDou Galileo GLONASS GPS | |
 Antenova | IPEX MHF1 | I-PEX MHF1 U.FL (UMCC) | Cable | -14 dB | Adhesive | 1.559 GHz | 1.609 GHz | Navigation | 1 | Flat Patch | 0.15 mm | 0.006 in | 2 GHz | 1 GHz | UHF | 1.561 GHz 1.575 GHz 1.602 GHz | 4 dBi | 1.45 | BeiDou Galileo GLONASS GPS | 100 mm |
Antenova | IPEX MHF1 | I-PEX MHF1 U.FL (UMCC) | Cable - 150mm | -14 dB | Adhesive | 1.559 GHz | 1.609 GHz | Navigation | 1 | Flat Patch | 0.15 mm | 0.006 in | 2 GHz | 1 GHz | UHF | 1.561 GHz 1.575 GHz 1.602 GHz | 4 dBi | 1.45 | BeiDou Galileo GLONASS GPS |
