6395 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

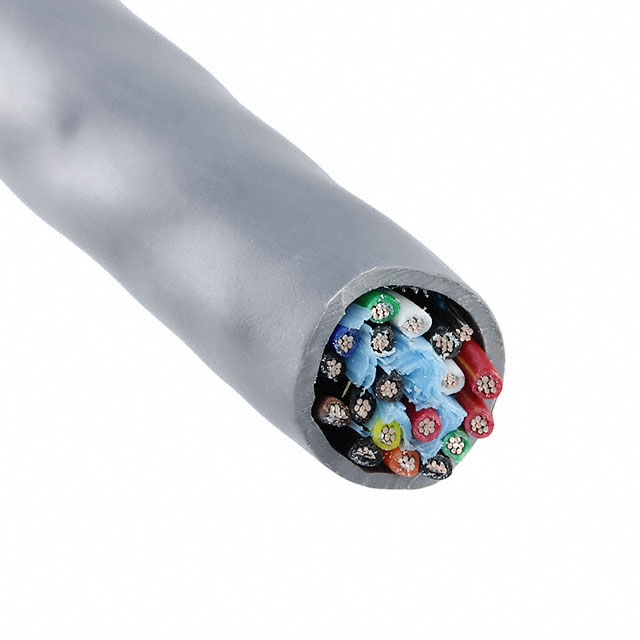

MULTI-PAIR 18COND 28AWG
| Part | Conductor Material | Ratings | Voltage | Shield Type | Conductor Insulation | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Coverage | Features | Cable Type | Length | Length | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Shield Material | Wire Gauge | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | UL Style 2960 | 300 V | Braid Foil | Polyethylene (PE) | Slate | 0.889 mm | 0.035 in | 90 % 100 % | Drain Wire | Multi-Pair | 1000 ft | 304.8 m | 18 | 0.305 in | 7.75 mm | Poly-Vinyl Chloride (PVC) | 36 AWG | 7 | Aluminum Copper Tinned | 28 AWG | ||
ALPHA WIRE | Copper Tinned | UL Style 2960 | 300 V | Braid Foil | Polyethylene (PE) | Slate | 0.889 mm | 0.035 in | 90 % 100 % | Drain Wire | Multi-Pair | 18 | 0.305 in | 7.75 mm | Poly-Vinyl Chloride (PVC) | 36 AWG | 7 | Aluminum Copper Tinned | 28 AWG | 30.5 m | 100 ft | ||
ALPHA WIRE | Copper Tinned | UL Style 2960 | 300 V | Braid Foil | Polyethylene (PE) | Slate | 0.889 mm | 0.035 in | 90 % 100 % | Drain Wire | Multi-Pair | 18 | 0.305 in | 7.75 mm | Poly-Vinyl Chloride (PVC) | 36 AWG | 7 | Aluminum Copper Tinned | 28 AWG | 152.4 m | 500 ' |
