R14130 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
BNC / STRAIGHT BULKHEAD JACK FRO
| Part | Mating Cycles | Dielectric Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Voltage Rating | Body Material | Mounting Type | Fastening Type | Connector Style | Number of Ports | Contact Termination | Connector Type | Impedance | Cable Group | Frequency - Max [Max] | Mounting Feature | Shield Termination | Center Contact Material | Housing Color | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

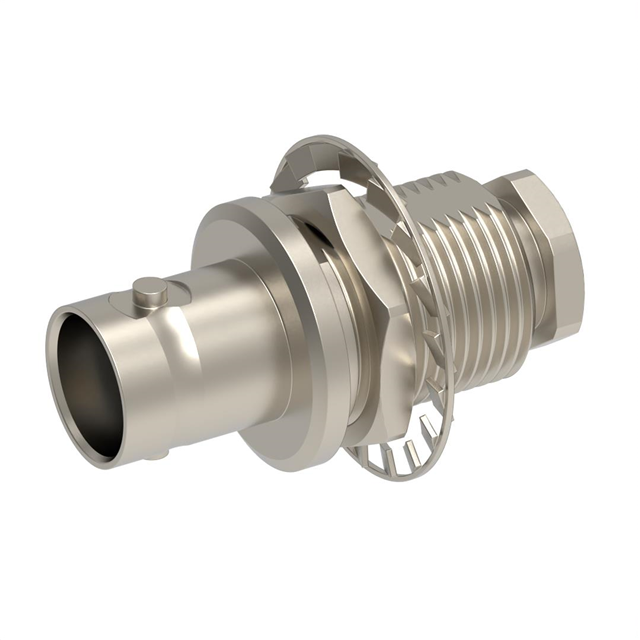

 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Nickel | 500 V | Brass | Panel Mount | Bayonet Lock | BNC | 1 | Solder | Female Socket Jack | 50 Ohms | 179 316 316 Double Braid RG-174 | 4 GHz | Bulkhead - Rear Side Nut | Clamp | Beryllium Copper | Silver | |

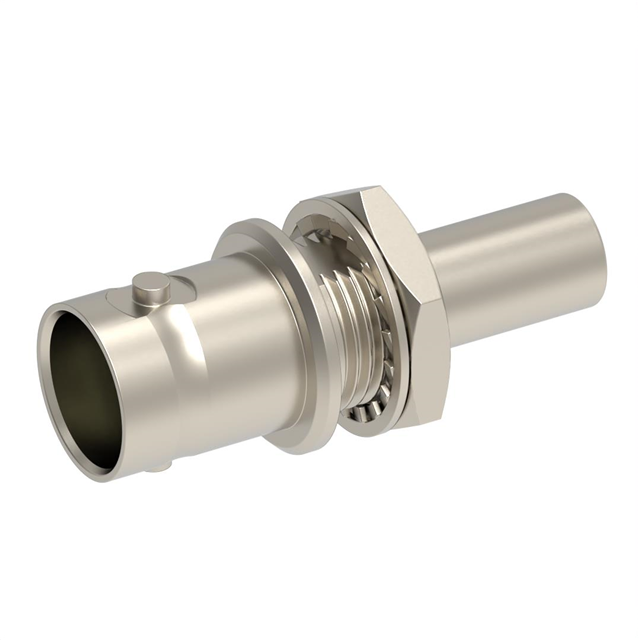

 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Nickel | 500 V | Brass | Panel Mount | Bayonet Lock | BNC | 1 | Crimp | Female Socket Jack | 50 Ohms | RG-174 | 4 GHz | Bulkhead - Front Side Nut | Crimp | Beryllium Copper | Silver | 316 |

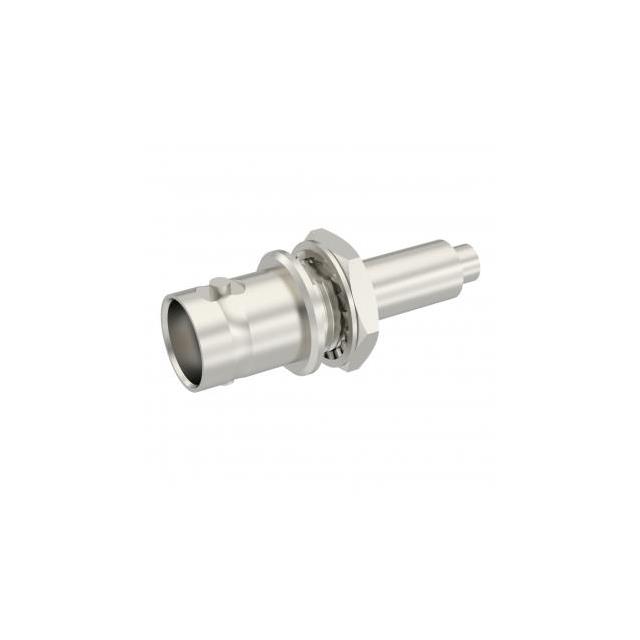

 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Nickel | 500 V | Brass | Panel Mount | Bayonet Lock | BNC | 1 | Crimp | Female Socket Jack | 50 Ohms | RG-58 | 4 GHz | Bulkhead - Rear Side Nut | Crimp | Bronze | Silver | 141 |
