392-012 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

...

Part	Termination Rows [custom]	Material - Insulation	Color	Mounting Type	Contact Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Termination	Pitch	Pitch	Card Type	Flange Feature	Read Out	Features	Contact Type	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Gender	Number of Positions	Termination Rows	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows

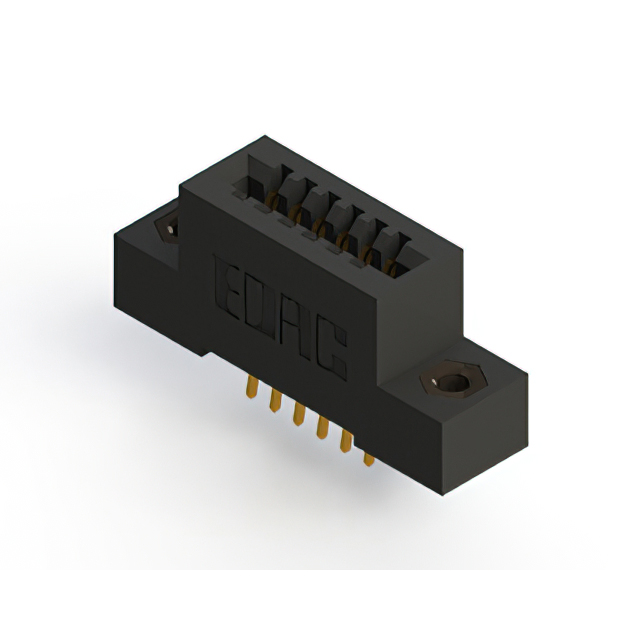

EDAC Inc. 392-012-556-207	2	Polyester Thermoplastic	Black	Board Edge Straddle Mount	Gold	Copper Alloy	-40 C	105 ░C	2	Solder	0.1 "	2.54 mm	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	Dual	Card Extender	Cantilever	6	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	12

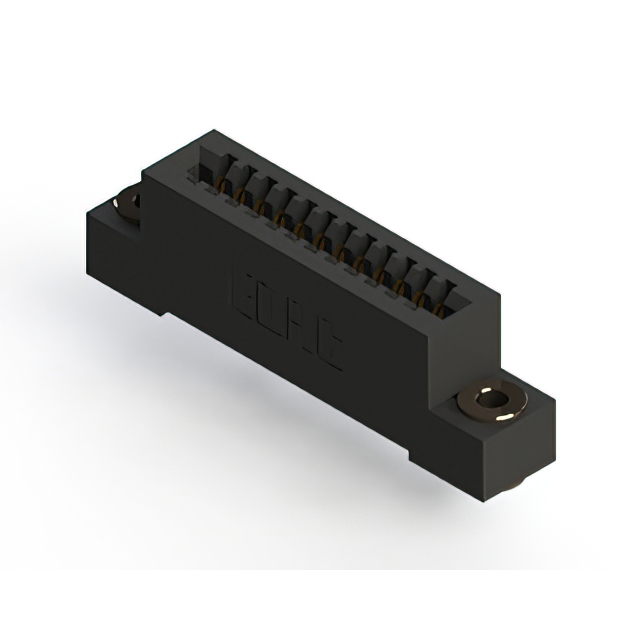

EDAC Inc. 392-012-524-103		Polyester Thermoplastic	Black	Through Hole	Gold	Copper Alloy	-40 C	105 ░C		Solder	0.1 "	2.54 mm	Non Specified - Single Edge	Floating Bobbin Flush Mount	Single		Cantilever	12	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	12	1	0.116 "	2.95 mm	1

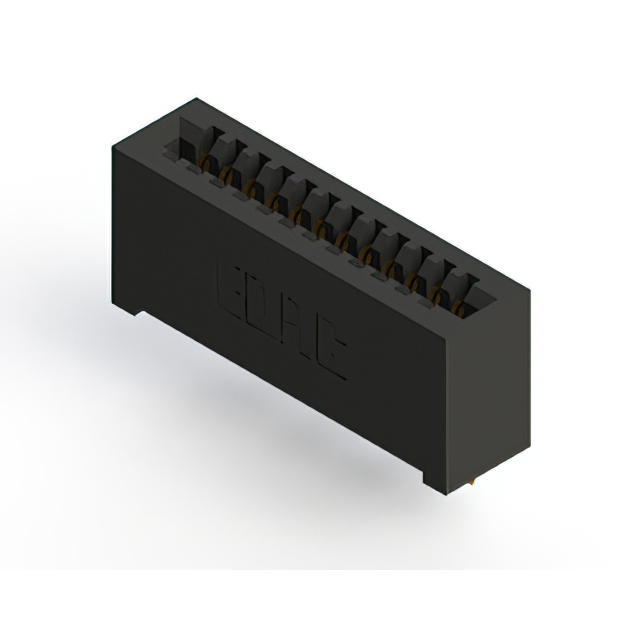

EDAC Inc. 392-012-524-101		Polyester Thermoplastic	Black	Through Hole	Gold	Copper Alloy	-40 C	105 ░C		Solder	0.1 "	2.54 mm	Non Specified - Single Edge		Single		Cantilever	12	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	12	1			1

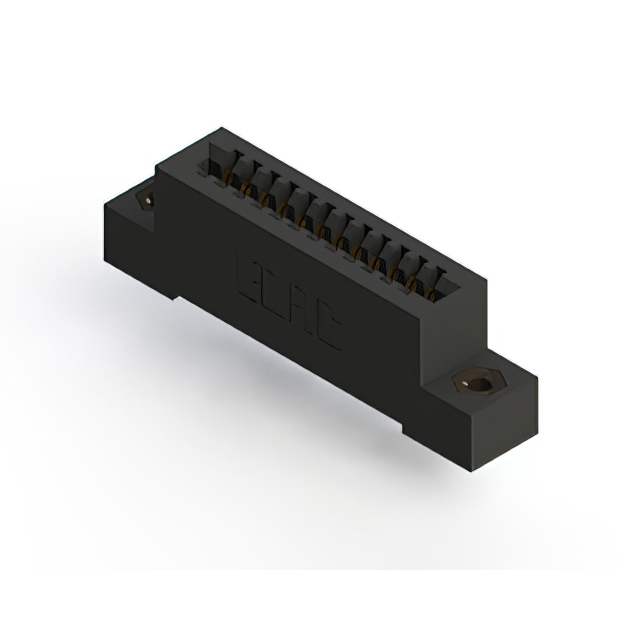

EDAC Inc. 392-012-520-108		Polyester Thermoplastic	Black	Through Hole	Gold	Copper Alloy	-40 C	105 ░C		Solder	0.1 "	2.54 mm	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening	Single		Cantilever	12	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	12	1			1
EDAC Inc. 392-012-559-204	2	Polyester Thermoplastic	Black	Right Angle Through Hole	Gold	Copper Alloy	-40 C	105 ░C	2	Solder Wire Wrap	0.1 "	2.54 mm	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	Dual		Cantilever	6	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	12		0.156 "	3.96 mm

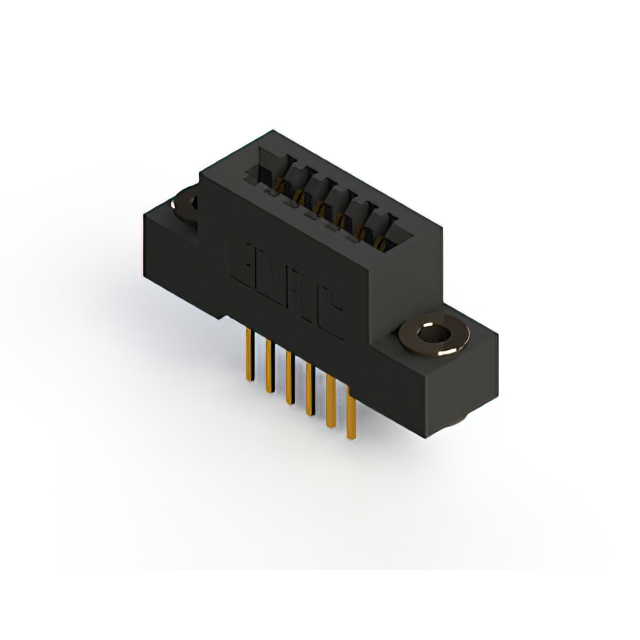

EDAC Inc. 392-012-540-203	2	Polyester Thermoplastic	Black	Through Hole	Gold	Copper Alloy	-40 C	105 ░C	2	Wire Wrap	0.1 "	2.54 mm	Non Specified - Dual Edge	Floating Bobbin Flush Mount	Dual		Cantilever	6	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	12		0.116 "	2.95 mm
EDAC Inc. 392-012-523-208	2	Polyester Thermoplastic	Black	Through Hole	Gold	Copper Alloy	-40 C	105 ░C	2	Solder	0.1 "	2.54 mm	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Dual		Cantilever	6	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	12

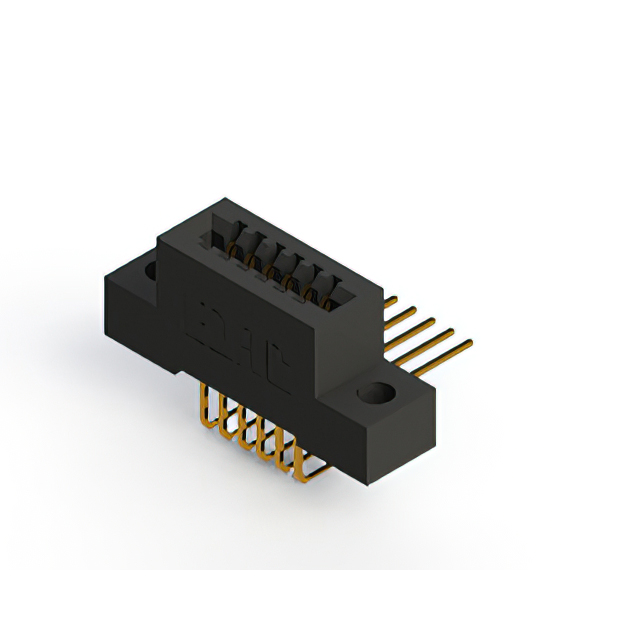

EDAC Inc. 392-012-558-204	2	Polyester Thermoplastic	Black	Right Angle Through Hole	Gold	Copper Alloy	-40 C	105 ░C	2	Solder Wire Wrap	0.1 "	2.54 mm	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	Dual		Cantilever	6	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	12		0.156 "	3.96 mm

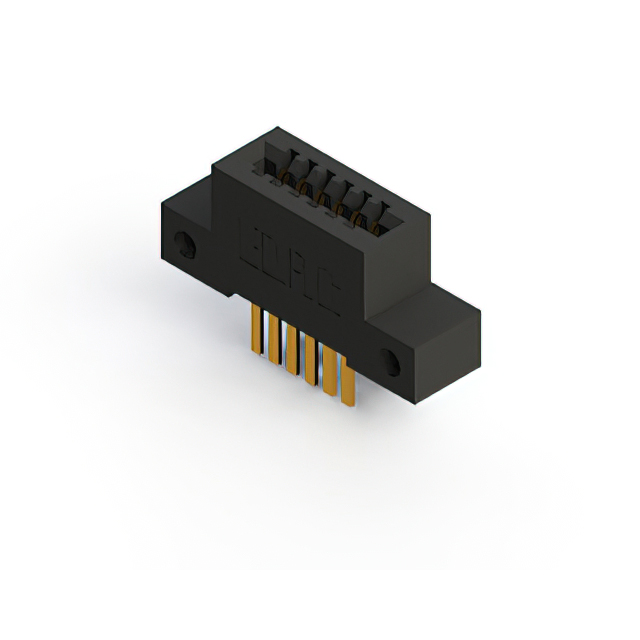

EDAC Inc. 392-012-544-212	2	Polyester Thermoplastic	Black	Through Hole	Gold	Copper Alloy	-40 C	105 ░C	2	Wire Wrap	0.1 "	2.54 mm	Non Specified - Dual Edge	Flush Mount Side Opening Unthreaded	Dual		Cantilever	6	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	12		0.128 "	3.25 mm

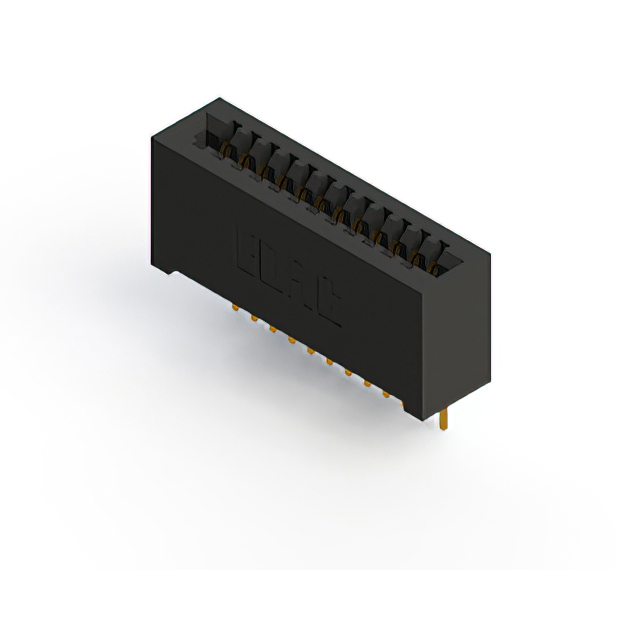

EDAC Inc. 392-012-540-101		Polyester Thermoplastic	Black	Through Hole	Gold	Copper Alloy	-40 C	105 ░C		Wire Wrap	0.1 "	2.54 mm	Non Specified - Single Edge		Single		Cantilever	12	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	12	1			1
