AIH50F300 Series

Catalog

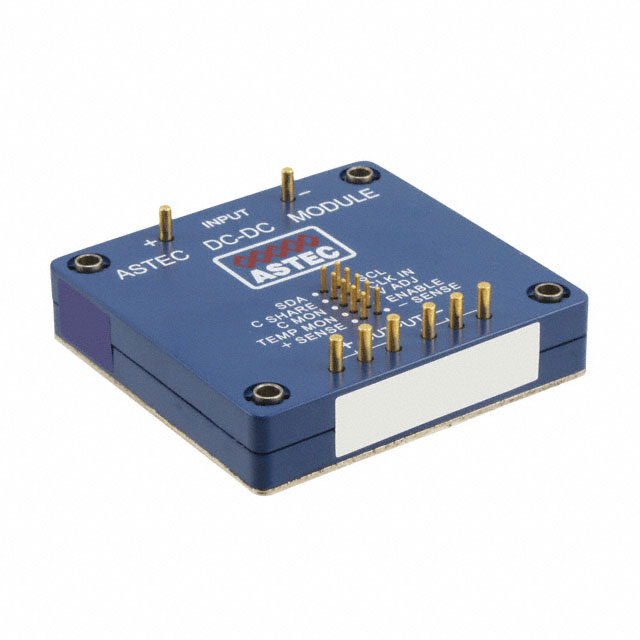

ISOLATED BOARD MOUNT DC/DC CONVERTER, DIP, FIXED, THROUGH HOLE, 165 W, 3.3 V, 50 A

Part	Voltage - Isolation	Power (Watts)	Voltage - Input (Max) [Max]	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Type	Voltage - Output 1	Package / Case	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]
ARTESYN / Advanced Energy AIH50F300-L	3000 V	250 W	420 V	OTP OVP Remote On/Off	Through Hole	-20 ░C	100 °C	ITE (Commercial)	1	2.3 in	61 mm	14 mm	0.55 in	2.4 in	58.4 mm	50 A	Isolated Module Digital	3.3 V	8-DIP Module 1/2 Brick	250 V
ARTESYN / Advanced Energy AIH50F300N-L		250 W	420 V	OVP	Through Hole	-20 ░C	100 °C	ITE (Commercial)	1	2.3 in	61 mm		0.5 in	2.4 in		50 A	Isolated Module	3.3 V	Module	250 V	58.4 mm	12.7 mm
ARTESYN / Advanced Energy AIH50F300N-NTL		250 W	420 V	OVP	Through Hole	-20 ░C	100 °C	ITE (Commercial)	1	2.4 in	58.4 mm	14 mm	0.55 in	2.3 in	61 mm	50 A	Non-Isolated PoL Module	3.3 V	Module	250 V
