1441 Series
Manufacturer: Keystone Electronics
Beta
⌘K

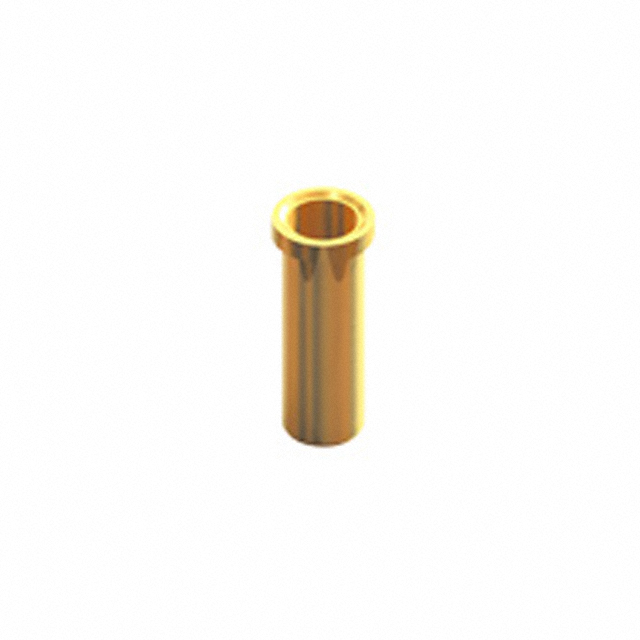

CONN PIN RCPT .032-.046 SOLDER
| Part | Length - Overall [x] | Length - Overall [x] | Tail Type | Contact Material | Termination | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Socket Depth [z] | Socket Depth [z] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Keystone Electronics | 5.61 mm | 0.221 in | No Tail | Beryllium Copper | Solder | Gold | 1.93 mm | 0.076 in | 0.09 in | 2.29 mm | 0.25 Ám | 10 Áin | 5.61 mm | 0.221 in | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " |
