PJT004 Series

Catalog

DC DC CONVERTER 0.51-5.5V

Part	Control Features	Supplier Device Package	Mounting Type	Package / Case	Applications	Current - Output (Max) [Max]	Features	Type	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]

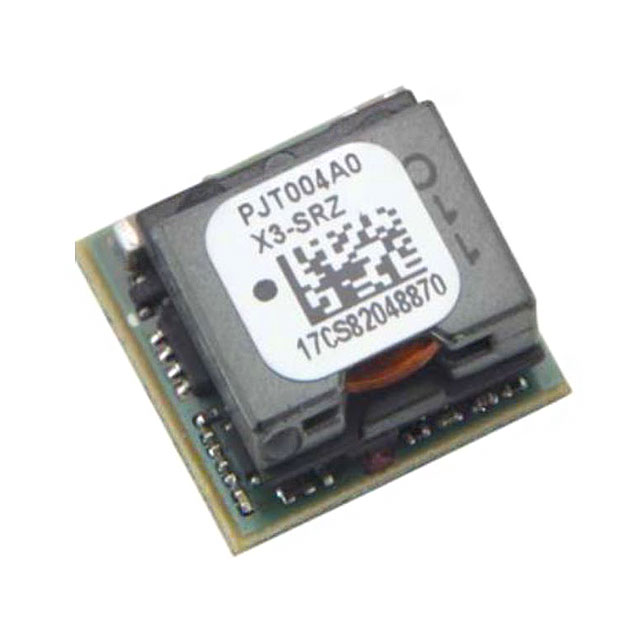

OmniOn Power™ PJT004A0X3-SRZ	Active Low Enable	Module	Surface Mount	17-SMD Module	ITE (Commercial)	4 A	OCP OTP Remote On/Off UVLO	Non-Isolated PoL Module Digital	1	4.5 V	14.4 V	94.6 %	85 °C	-40 C	0.51 V	5.5 V	0.48 in	12.2 mm	12.2 mm	0.48 in	7.5 mm	0.3 in

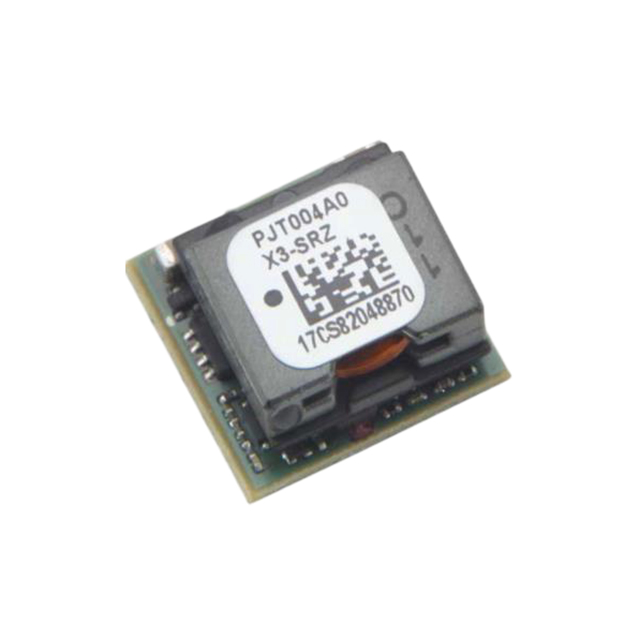

OmniOn Power™ PJT004A0X43-SRZ	Active High Enable	Module	Surface Mount	17-SMD Module	ITE (Commercial)	4 A	OCP OTP Remote On/Off UVLO	Non-Isolated PoL Module Digital	1	4.5 V	14.4 V	94.6 %	85 °C	-40 C	0.51 V	5.5 V	0.48 in	12.2 mm	12.2 mm	0.48 in	7.5 mm	0.3 in
OmniOn Power™ PJT004A0X3-SRZ	Active Low Enable	Module	Surface Mount	17-SMD Module	ITE (Commercial)	4 A	OCP OTP Remote On/Off UVLO	Non-Isolated PoL Module Digital	1	4.5 V	14.4 V	94.6 %	85 °C	-40 C	0.51 V	5.5 V	0.48 in	12.2 mm	12.2 mm	0.48 in	7.5 mm	0.3 in
OmniOn Power™ PJT004A0X43-SRZ	Active High Enable	Module	Surface Mount	17-SMD Module	ITE (Commercial)	4 A	OCP OTP Remote On/Off UVLO	Non-Isolated PoL Module Digital	1	4.5 V	14.4 V	94.6 %	85 °C	-40 C	0.51 V	5.5 V	0.48 in	12.2 mm	12.2 mm	0.48 in	7.5 mm	0.3 in
