471215CY Series

Catalog

CABLE 12COND 15AWG GRAY SHLD 1M

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Length [x]	Length [x]	Length	Length	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Number of Conductors	Conductor Insulation	Cable Type	Shield Material	Wire Gauge	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Shield Coverage	Length

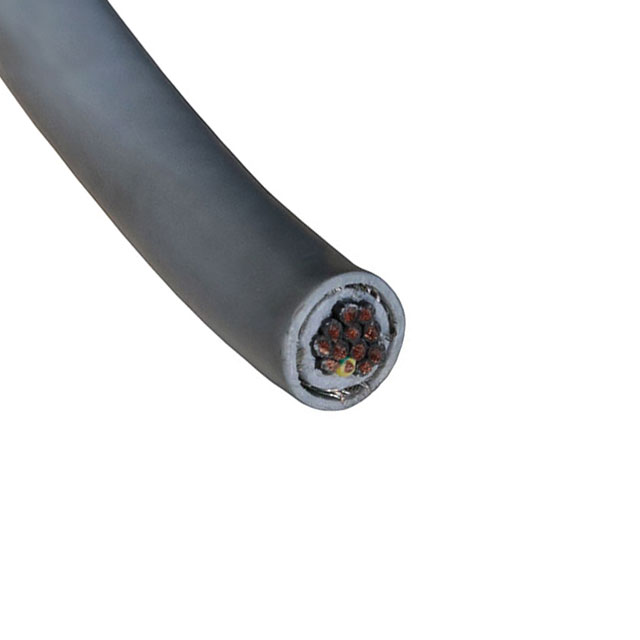

ALPHA WIRE 471215CY GE033	0.0512 in	1.3 mm	Gray	1 m	3.28 ft	10 m 20 m 30 m	32.81 ft 65.62 ft 98.43 ft	300 V	28	0.0098 in	Braid	12	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Copper Tinned	15 AWG	Copper Bare	15.06 mm	0.593 in	Chemical Resistant Oil Resistant UV Resistant	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	80 %
ALPHA WIRE 471215CY GE432	0.0512 in	1.3 mm	Gray			984.3 ft		300 V	28	0.0098 in	Braid	12	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Copper Tinned	15 AWG	Copper Bare	15.06 mm	0.593 in	Chemical Resistant Oil Resistant UV Resistant	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	80 %	300 m

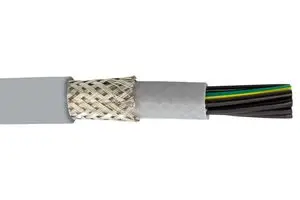

ALPHA WIRE 471215CY GE321	0.0512 in	1.3 mm	Gray			50 m	164 ft	300 V	28	0.0098 in	Braid	12	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Copper Tinned	15 AWG	Copper Bare	15.06 mm	0.593 in	Chemical Resistant Oil Resistant UV Resistant	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	80 %

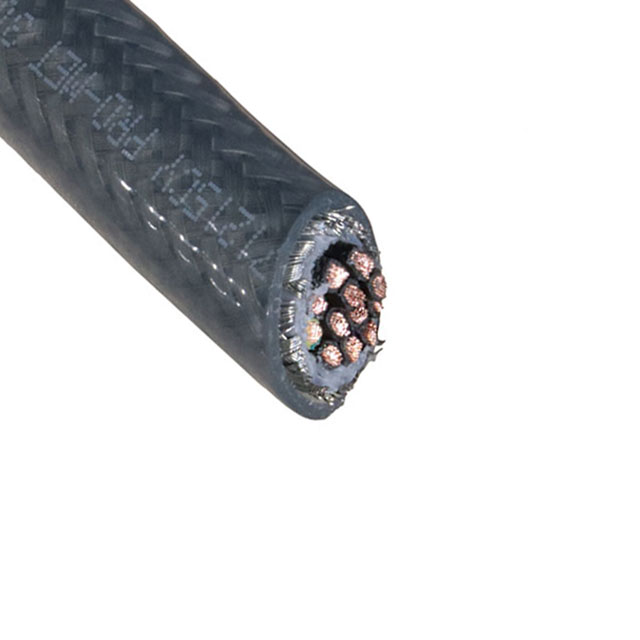

ALPHA WIRE 471215CY CL033	0.0512 in	1.3 mm	Clear			20 m 30 m 100 m	65.62 ft 98.43 ft 328.1 ft	300 V	28	0.0098 in	Braid	12	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Copper Tinned	15 AWG	Copper Bare	15.06 mm	0.593 in	Chemical Resistant Oil Resistant UV Resistant	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	80 %
ALPHA WIRE 471215CY CL432	0.0512 in	1.3 mm	Clear			984.3 ft		300 V	28	0.0098 in	Braid	12	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Copper Tinned	15 AWG	Copper Bare	15.06 mm	0.593 in	Chemical Resistant Oil Resistant UV Resistant	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	80 %	300 m
