226DM1 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Illumination	Actuator Length, Right Angle	Switch Function	Switch Travel	Actuator Orientation	Operating Force	Mechanical Life	Termination Style	Actuator Type	Circuit	Mounting Type	Outline [y]	Outline [x]	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Features

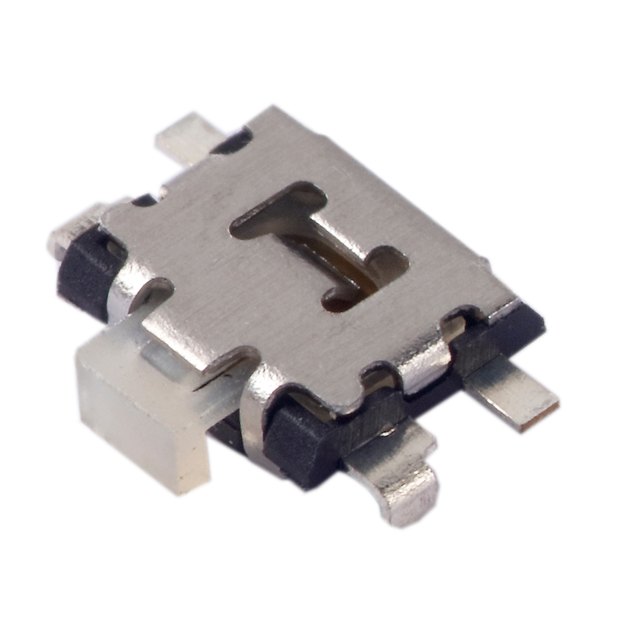

Tusonix a Subsidiary of CTS Electronic Components 226DM1SABR	Non-Illuminated	3.5 mm	Off-Mom	0.2 mm	Side Actuated	220 gf	100000 Cycles	Gull Wing	Rectangular Button	SPST-NO	Surface Mount Right Angle	2.9 mm	3.5 mm	0.05 A 12 VDC	85 °C	-40 °C	Tactile Feedback
Tusonix a Subsidiary of CTS Electronic Components 226DM1SAAR	Non-Illuminated	3.5 mm	Off-Mom	0.2 mm	Side Actuated		100000 Cycles	Gull Wing	Rectangular Button	SPST-NO	Surface Mount Right Angle	2.9 mm	3.5 mm	0.05 A 12 VDC	85 °C	-40 °C	Tactile Feedback
