307-060 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 60POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Features | Gender | Contact Material | Number of Positions/Bay/Row | Card Type | Contact Finish | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Color | Contact Type | Flange Feature | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Positions | Pitch | Pitch | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

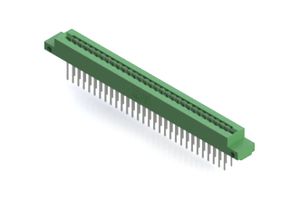

 EDAC Inc. | 2 | Polyester Thermoplastic | Card Guides | Female | Copper Alloy | 30 | Non Specified - Dual Edge | Gold | Solder | -40 C | 105 ░C | 2 | Green | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | 0.25 Ám | 10 Áin | Dual | 60 | 3.96 mm | 0.156 in | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Female | Copper Alloy | 30 | Non Specified - Dual Edge | Gold | Wire Wrap | -40 C | 105 ░C | 2 | Green | Semi Bellows | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.25 Ám | 10 Áin | Dual | 60 | 3.96 mm | 0.156 in | 3.25 mm | 0.128 " | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Female | Copper Alloy | 30 | Non Specified - Dual Edge | Tin | Solder | -40 C | 105 ░C | 2 | Green | Semi Bellows | Flush Mount Side Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Dual | 60 | 3.96 mm | 0.156 in | 3.25 mm | 0.128 " | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Female | Copper Alloy | 30 | Non Specified - Dual Edge | Gold | Solder | -40 C | 105 ░C | 2 | Green | Semi Bellows | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.25 Ám | 10 Áin | Dual | 60 | 3.96 mm | 0.156 in | 3.25 mm | 0.128 " | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Female | Copper Alloy | 30 | Non Specified - Dual Edge | Tin | Solder | -40 C | 105 ░C | 2 | Green | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Dual | 60 | 3.96 mm | 0.156 in | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Female | Copper Alloy | 30 | Non Specified - Dual Edge | Tin | Solder | -40 C | 105 ░C | 2 | Green | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Dual | 60 | 3.96 mm | 0.156 in | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Female | Copper Alloy | 30 | Non Specified - Dual Edge | Tin | Wire Wrap | -40 C | 105 ░C | 2 | Green | Semi Bellows | Flush Mount Side Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Dual | 60 | 3.96 mm | 0.156 in | 3.25 mm | 0.128 " | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Card Extender Card Guides | Female | Copper Alloy | 30 | Non Specified - Dual Edge | Gold | Solder | -40 C | 105 ░C | 2 | Green | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | Dual | 60 | 3.96 mm | 0.156 in | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Female | Copper Alloy | 30 | Non Specified - Dual Edge | Tin | Solder | -40 C | 105 ░C | 2 | Green | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Dual | 60 | 3.96 mm | 0.156 in | ||||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Card Guides | Female | Copper Alloy | 30 | Non Specified - Dual Edge | Gold | Solder | -40 C | 105 ░C | 2 | Green | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.25 Ám | 10 Áin | Dual | 60 | 3.96 mm | 0.156 in |
