19411100 Series

Manufacturer: HARTING

Catalog

HAN-ECO MODULAR 10B SURFACE MOUNT HOUSING 2XM32 W/ GLANDS (HOLDS CABLE 13-21MM)

Part	Lock Location	Ingress Protection	Housing Material	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Features	Size	Style	Connector Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]

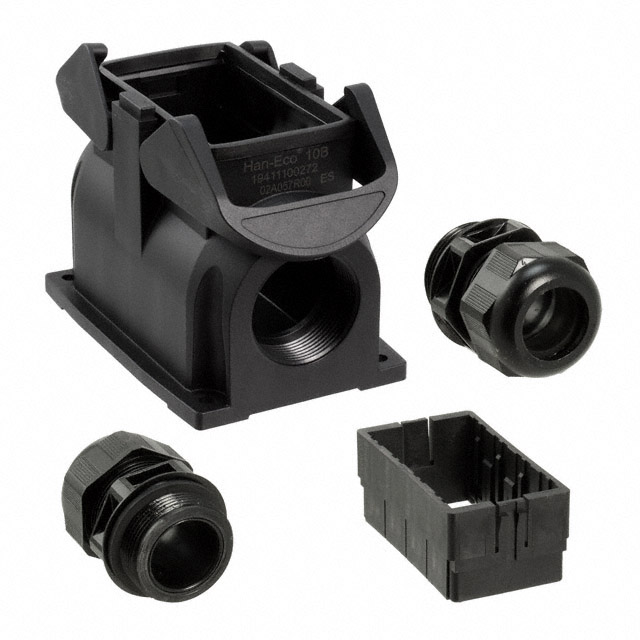

HARTING 19411100272	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	Glass Filled Nylon Polyamide (PA)	Black	125 °C	-40 C	M32	Feed Through	10B	Side Entry	Base - Box Mount	2.843 in	72.2 mm	99 mm	68 mm	3.898 in	2.677 "

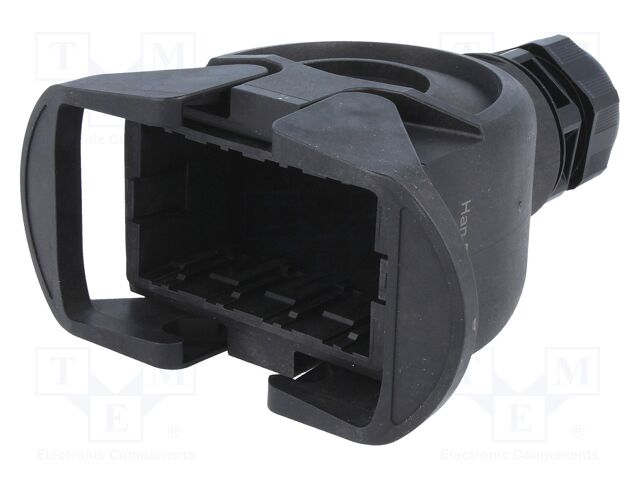

HARTING 19411100722	Locking Clip (2) on Hood Top	IP65 - Dust Tight Water Resistant	Glass Filled Nylon Polyamide (PA)	Black	125 °C	-40 C	M32	Cable to Cable	10B	Bottom Entry Top or Bottom Entry	Hood - Coupling	4.709 in	119.6 mm	74 mm	58.25 mm	2.913 in	2.293 in

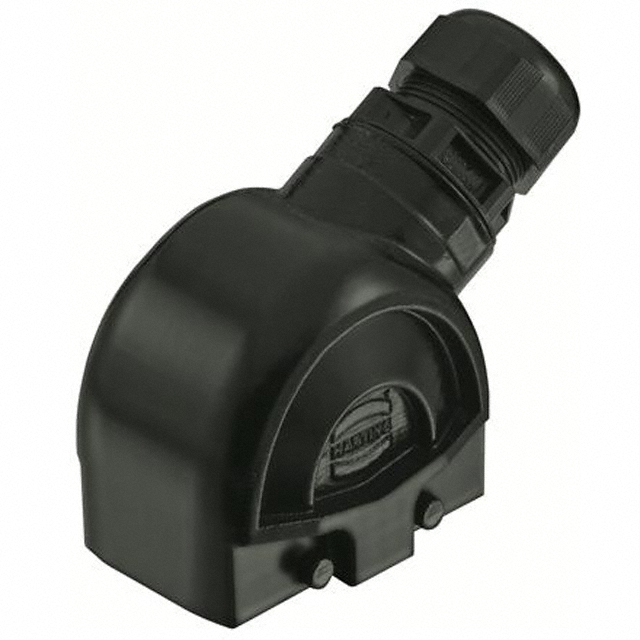

HARTING 19411100522	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	Glass Filled Nylon Polyamide (PA)	Black	125 °C	-40 C	M32		10B	Side Entry	Hood	2.693 in	68.4 mm	74 mm	57 mm	2.913 in	2.244 "
