CAB425RF Series
Manufacturer: GCT
Beta
⌘K

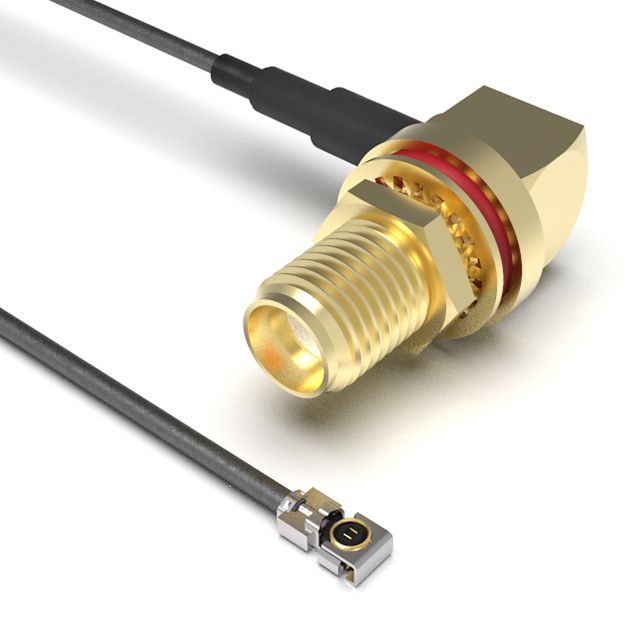

CBL ASSY SMA-MHF4L LK J-P 7.874"
| Part | 1st Connector Mounting Type | Ingress Protection | Length | Length | Overall Impedance | 2nd Contact Gender | Color | 1st Connector | Features | 1st Connector Mounting Feature | Frequency - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | 1st Contact Gender | Cable Type | Cable Type [diameter] | 2nd Connector Mounting Type | Cable Impedance | Style | 2nd Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panel Mount | IP67/IP68 | 200 mm | 7.874 in | 50 Ohms | Female | Black | SMA Jack Right Angle | IP Rated Unmated | Bulkhead - Front Side Nut | 6000 MHz | 85 °C | -40 C | Female | Coaxial Cable | 1.37 mm | Free Hanging (In-Line) | 50 Ohms | SMA to I-PEX MHF4L LK | ||
Panel Mount | IP67/IP68 | 200 mm | 7.874 in | 50 Ohms | Female | Black | SMA Jack Right Angle | IP Rated Unmated | Bulkhead - Front Side Nut | 6000 MHz | 85 °C | -40 C | Female | Coaxial Cable | 1.37 mm | Free Hanging (In-Line) | 50 Ohms | SMA to IPEX MHF4L LK | IPEX MHF4L LK (Locking) Plug Right Angle |
