78332 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

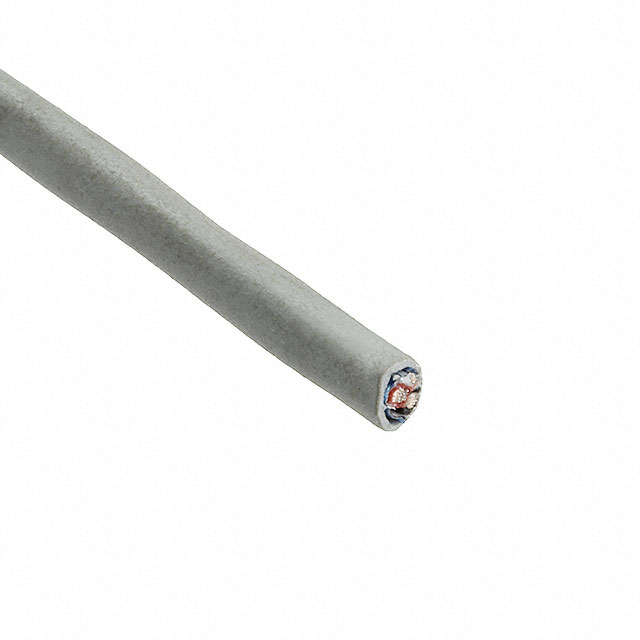

SHIELDED MULTI-CONDUCTOR CABLE TAPE MODIFIED POLYPHENYLENE ETHER/POLYETHYLENE 2CONDUCTORS 22AWG 4.19MM 300VAC SLATE MODIFIED POLYPHENYLENE ETHER/POLYETHYLENE 30.48M SPOOL
| Part | Shield Material | Shield Coverage | Conductor Material | Conductor Insulation | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Cable Type | Ratings | Jacket (Insulation) Material | Number of Conductors | Features | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Shield Type | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 100 % | Copper Tinned | Polyphenylene Ether Modified (mPPE) | 22 AWG | 80 °C | -40 C | 300 VDC | Multi-Conductor | ISO 10993 UL Style 21460 | Polyphenylene Ether Modified (mPPE) | 2 | Biological Compatibility Drain Wire Rip Cord | 0.381 mm | 0.015 in | 34 AWG | 19 | 0.157 in | 3.99 mm | 100 ft | 30.5 m | Braid Foil | Slate |
