VHV12 Series
Manufacturer: Volgen + Furuno
Beta
⌘K
DC DC CONVERTER 1500V 1.5W
| Part | Voltage - Input (Max) [Max] | Number of Outputs | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Current - Output (Max) [Max] | Voltage - Output 1 | Package / Case | Mounting Type | Applications | Type | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Control Features | Voltage - Input (Min) [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Volgen + Furuno | 13 V | 1 | 1.18 in | 0.63 " | 1.73 " | 44 mm | 30 mm | 16 mm | 1 mA | 1500 V | 7-SIP Module | Through Hole | ITE (Commercial) | High Voltage - Non-Isolated Module | 1.5 W | 50 °C | -10 °C | Active High Enable | 11 V | OCP Remote On/Off SCP |
 Volgen + Furuno | 13.2 V | 1 | 0.78 in | 0.47 " | 4.33 in | 110 mm | 19.8 mm | 12 mm | 5.6 mA | 470 V | 7-SIP Module | Through Hole | ITE (Commercial) | High Voltage - Non-Isolated Module | 2 W | 60 °C | -10 °C | Active High Enable | 10.8 V | OCP Remote On/Off |

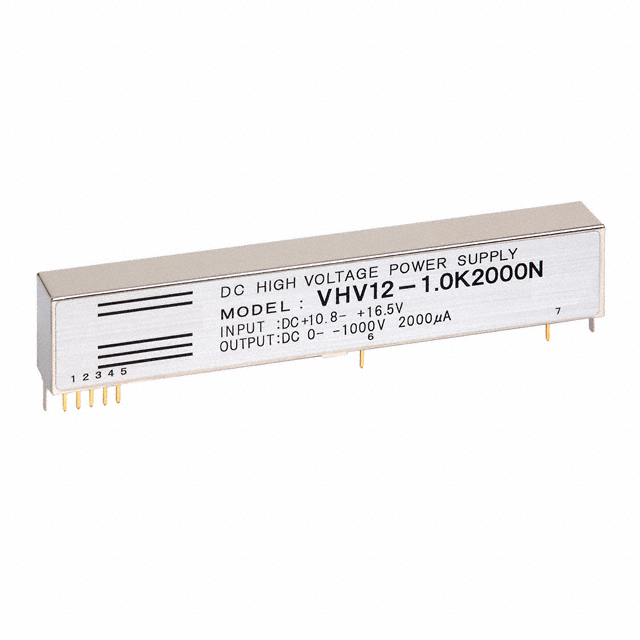

Volgen + Furuno | 16.5 V | 1 | 0.78 in | 0.47 " | 4.33 in | 110 mm | 19.8 mm | 12 mm | 2 mA | 1000 V | 7-SIP Module | Through Hole | ITE (Commercial) | High Voltage - Non-Isolated Module | 2 W | 60 °C | -10 °C | Active High Enable | 10.8 V | OCP Remote On/Off |

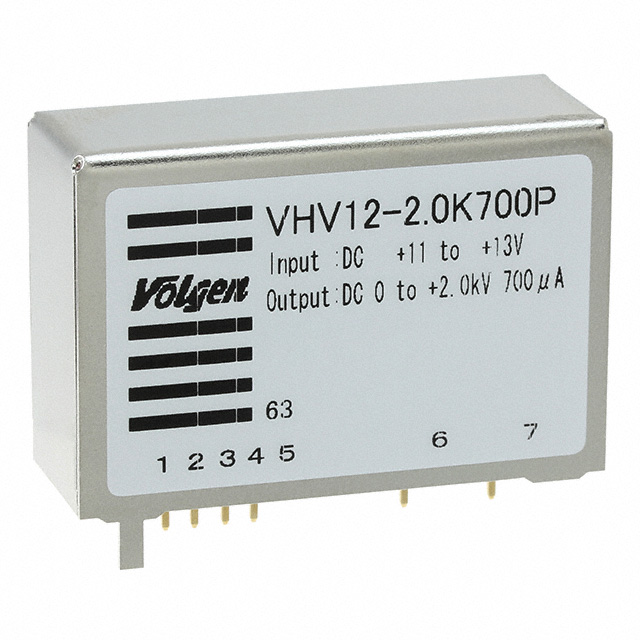

Volgen + Furuno | 13 V | 1 | 1.18 in | 0.63 " | 1.73 " | 44 mm | 30 mm | 16 mm | 700 µA | 2000 V | 7-SIP Module | Through Hole | ITE (Commercial) | High Voltage - Non-Isolated Module | 1.5 W | 50 °C | -10 °C | Active High Enable | 11 V | OCP Remote On/Off SCP |
