000965 Series
Manufacturer: Molex
Beta
⌘K
CONN HEADER VERT 6POS 3.96MM
| Part | Applications | Number of Positions | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Shrouding | Insulation Height | Insulation Height | Style | Contact Type | Contact Length - Post | Contact Length - Post | Connector Type | Material Flammability Rating | Contact Shape | Mounting Type | Fastening Type | Overall Contact Length | Overall Contact Length | Number of Rows | Termination | Contact Material | Insulation Material | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Automotive General Purpose Industrial Medical Telecommunications | 6 | All | 3.96 mm | 0.156 in | Shrouded - 1 Wall | 12.25 mm | 0.482 in | Board to Cable/Wire | Male Pin | 0.143 in | 3.63 mm | Header | UL94 V-2 | Square | Through Hole | Friction Lock | 0.687 in | 17.45 mm | 1 | Solder | Brass | Nylon 6/6 Polyamide (PA66) | Tin | 0.419 in | 10.65 mm | |||

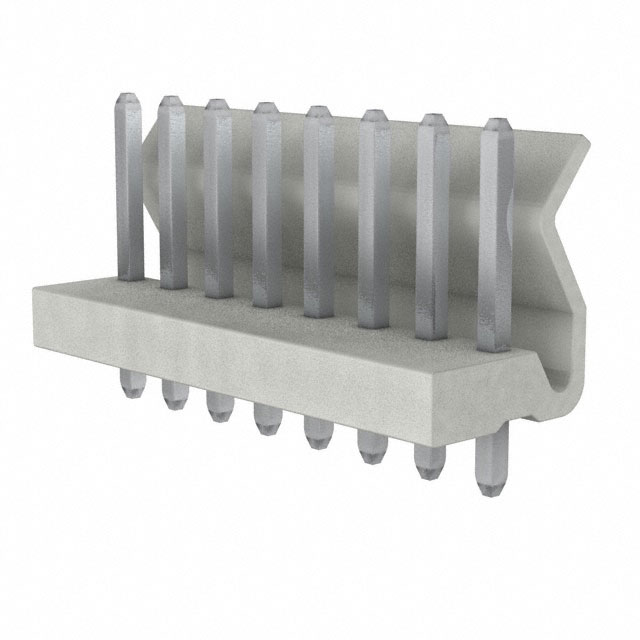

 Molex | Automotive General Purpose Industrial Medical Telecommunications | 8 | All | 3.96 mm | 0.156 in | Shrouded - 1 Wall | 12.25 mm | 0.482 in | Board to Cable/Wire | Male Pin | 0.142 in | 3.6 mm | Header | UL94 V-2 | Square | Through Hole | Friction Lock | 0.687 in | 17.45 mm | 1 | Solder | Brass | Nylon 6/6 Polyamide (PA66) | Tin | 0.419 in | 10.65 mm | Natural | 5.08 µm | 200 µin |
Molex | Automotive General Purpose Industrial Medical Telecommunications | 7 | All | 3.96 mm | 0.156 in | Shrouded - 1 Wall | 12.25 mm | 0.482 in | Board to Cable/Wire | Male Pin | 0.143 in | 3.63 mm | Header | UL94 V-2 | Square | Through Hole | Friction Lock | 0.687 in | 17.45 mm | 1 | Solder | Brass | Nylon 6/6 Polyamide (PA66) | Tin | 0.419 in | 10.65 mm |
