MS3102R16 Series

Catalog

CONN CIRCULAR PIN 3 POS SOLDER ST BOX MOUNT 3 TERMINAL 1 PORT

Part	Voltage Rating	Current Rating (Amps)	Mounting Feature	Shell Finish	Connector Type	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Orientation [x]	Qualification	Mounting Type	Ingress Protection	Contact Finish - Mating	Fastening Type	Shell Material	Primary Material	Shell Size - Insert	Color	Contact Material	Shielding	Cable Opening	Cable Opening	Insert Material	Applications	Orientation	Number of Positions	Shell Size - Insert [Max]	Shell Size - Insert [Min]
ITT Cannon, LLC MS3102R16-10PX	500 VAC 700 VDC	41 A	Flange	Olive Drab Cadmium	Receptacle Male Pins	Military	-55 C	125 °C	X	MIL-DTL-5015	Panel Mount	Environment Resistant	Silver	Threaded	Aluminum Alloy	Metal	16-10	Olive Drab

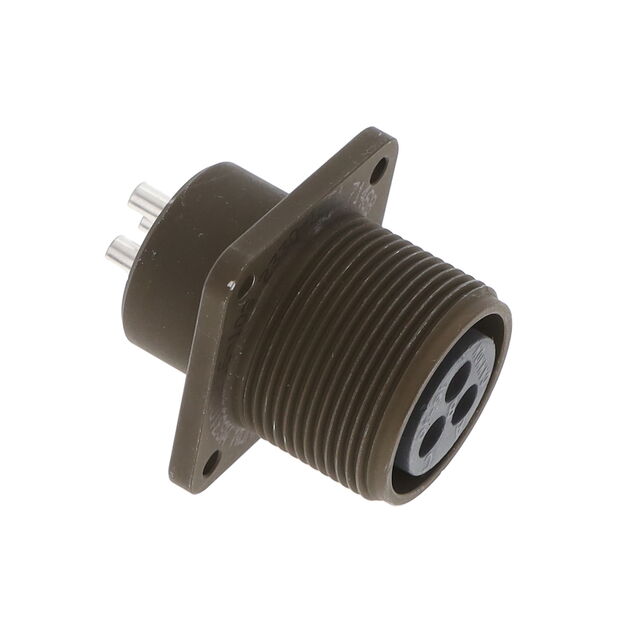

ITT Cannon, LLC MS3102R16-10S			Flange	Olive Drab Chromate over Cadmium	Receptacle Female Sockets	Military	-55 C	125 °C		MIL-DTL-5015	Panel Mount	Environment Resistant	Silver	Threaded	Aluminum Alloy	Metal	16-10	Olive Drab	Copper Alloy	Unshielded	0.875 in	22.22 mm	Neoprene	Marine Military	N (Normal)

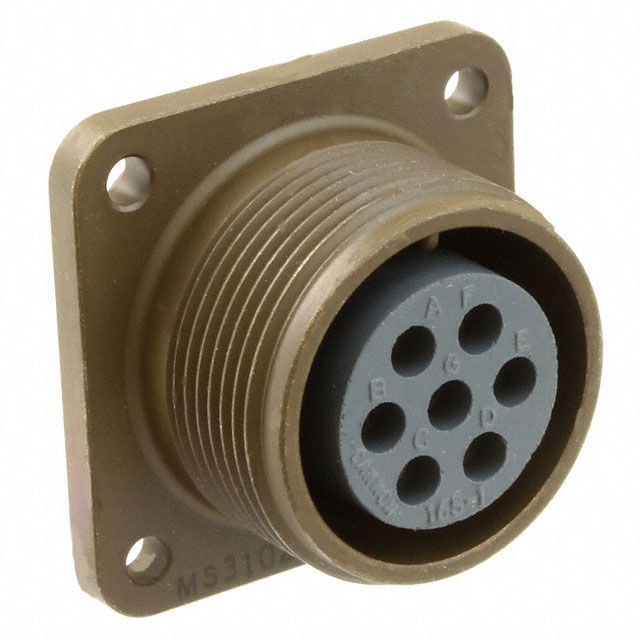

ITT Cannon, LLC MS3102R16S-1S	500 VAC 700 VDC	22 A	Flange	Olive Drab Cadmium	Receptacle Female Sockets	Military	-55 C	125 °C		MIL-DTL-5015	Panel Mount	Environment Resistant	Silver	Threaded	Aluminum Alloy	Metal	16S-1	Olive Drab							N (Normal)	7
ITT Cannon, LLC MS3102R16-11S	500 VAC 700 VDC	41 A	Flange	Olive Drab Cadmium	Receptacle Female Sockets	Military	-55 C	125 °C		MIL-DTL-5015	Panel Mount	Environment Resistant	Silver	Threaded	Aluminum Alloy	Metal		Olive Drab							N (Normal)	2	11	16
ITT Cannon, LLC MS3102R16-9P	500 VAC 700 VDC	22 A 41 A	Flange	Olive Drab Cadmium	Receptacle Male Pins	Military	-55 C	125 °C		MIL-DTL-5015	Panel Mount	Environment Resistant	Silver	Threaded	Aluminum Alloy	Metal		Olive Drab							N (Normal)	4
