NP0115H Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSH SPST-NO 0.4VA 28V
| Part | Electrical Life | Mechanical Life | Type | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Circuit | Actuator Marking | Illumination Type, Color | Current Rating (Amps) | Voltage Rating - DC | Switch Function | Termination Style | Illumination Voltage (Nominal) | Color - Actuator/Cap | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

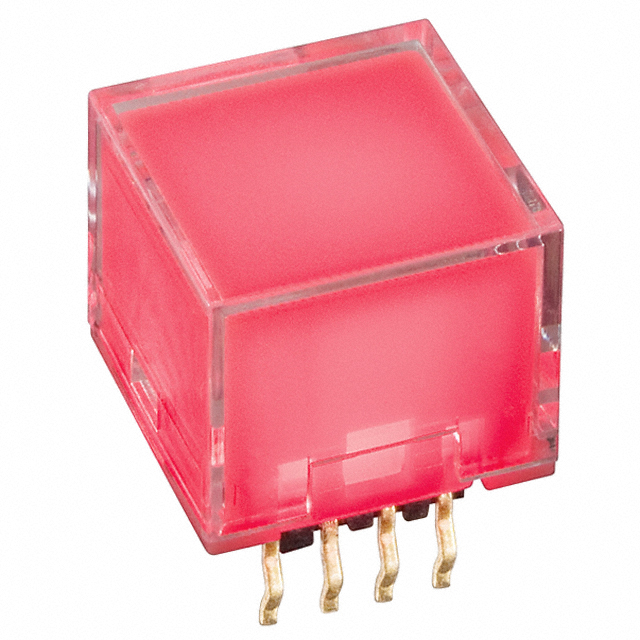

 NKK Switches | 500000 Cycles | 500000 Cycles | Illuminated Standard | 28 V | 50 °C | -25 °C | Through Hole | SPST-NO | No Marking | LED Red | 0.4 VA | 28 V | Off-Mom | PC Pin | 2 VDC | Clear | Button Square |

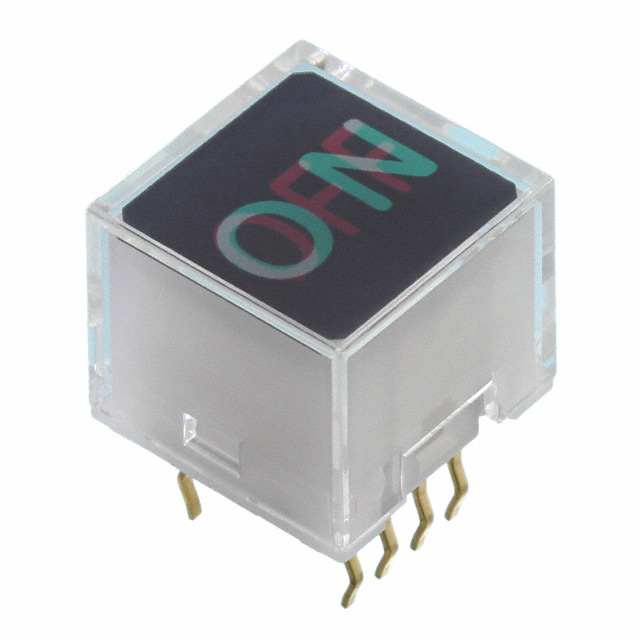

 NKK Switches | 500000 Cycles | 500000 Cycles | Illuminated Standard | 28 V | 50 °C | -25 °C | Through Hole | SPST-NO | ON/OFF | Green/Red LED | 0.4 VA | 28 V | Off-Mom | PC Pin | 2 VDC 3.5 VDC | Green Red | Alternating Legend Button Square |

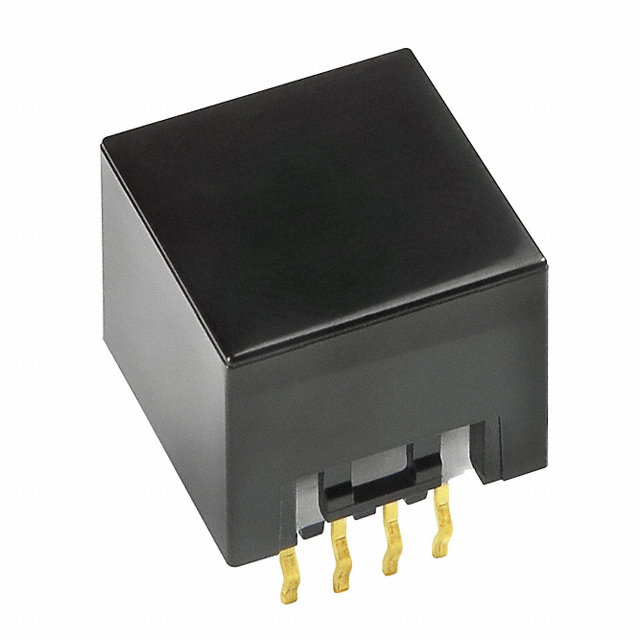

 NKK Switches | 500000 Cycles | 500000 Cycles | Standard | 28 V | 70 °C | -25 °C | Through Hole | SPST-NO | No Marking | 0.4 VA | 28 V | Off-Mom | PC Pin | Black | Button Square | ||
 NKK Switches | 500000 Cycles | 500000 Cycles | Illuminated Standard | 28 V | 50 °C | -25 °C | Through Hole | SPST-NO | No Marking | LED Red | 0.4 VA | 28 V | Off-Mom | PC Pin | 2 VDC | Button Square | |
 NKK Switches | 500000 Cycles | 500000 Cycles | Illuminated Standard | 28 V | 50 °C | -25 °C | Through Hole | SPST-NO | START/STOP (Alternating) | Green/Red LED | 0.4 VA | 28 V | Off-Mom | PC Pin | 2 VDC 3.5 VDC | Green Red | Alternating Legend Button Square |
NKK Switches | 500000 Cycles | 500000 Cycles | Illuminated Standard | 28 V | 50 °C | -25 °C | Through Hole | SPST-NO | No Marking | Green/Red LED | 0.4 VA | 28 V | Off-Mom | PC Pin | 2 VDC 3.5 VDC | Clear | Button Square |

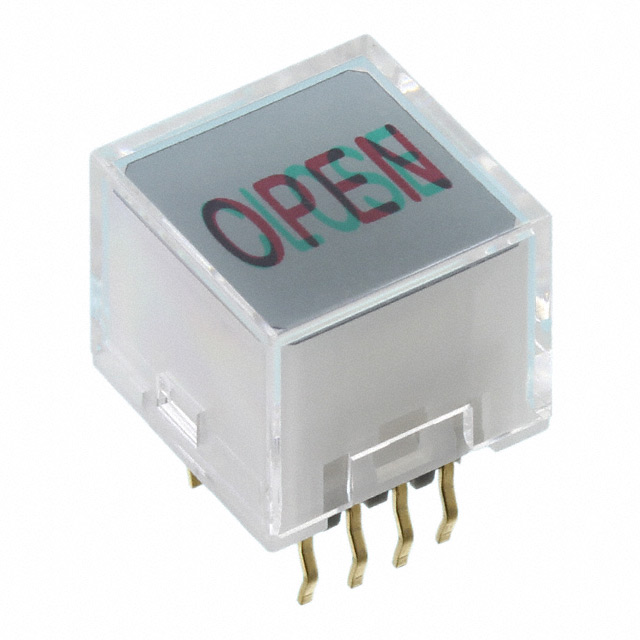

 NKK Switches | 500000 Cycles | 500000 Cycles | Illuminated Standard | 28 V | 50 °C | -25 °C | Through Hole | SPST-NO | OPEN/CLOSE | Green/Red LED | 0.4 VA | 28 V | Off-Mom | PC Pin | 2 VDC 3.5 VDC | Green Red | Alternating Legend Button Square |
NKK Switches | 500000 Cycles | 500000 Cycles | Illuminated Standard | 28 V | 50 °C | -25 °C | Through Hole | SPST-NO | No Marking | Amber LED | 0.4 VA | 28 V | Off-Mom | PC Pin | 2.1 VDC | Button Square | |
NKK Switches | 500000 Cycles | 500000 Cycles | Illuminated Standard | 28 V | 50 °C | -25 °C | Through Hole | SPST-NO | No Marking | Green/Red LED | 0.4 VA | 28 V | Off-Mom | PC Pin | 2 VDC 3.5 VDC | Button Square | |
 NKK Switches | 500000 Cycles | 500000 Cycles | Illuminated Standard | 28 V | 50 °C | -25 °C | Through Hole | SPST-NO | ON/OFF | Green/Red LED | 0.4 VA | 28 V | Off-Mom | PC Pin | 2 VDC 3.5 VDC | Green Red | Alternating Legend Button Square |
