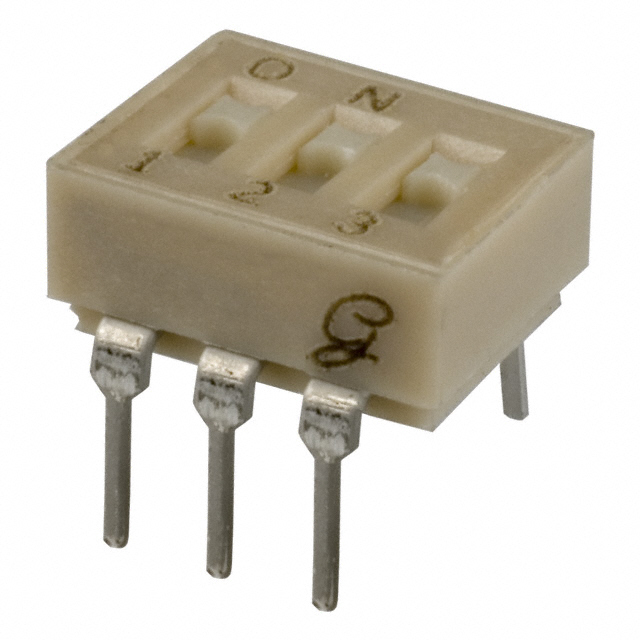

90B03 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Body Material | Length | Length | Mechanical Life | Electrical Life | Contact Material | Pitch | Pitch | Height Above Board [z] | Height Above Board [z] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage Rating | Circuit | Termination Style | Contact Finish | Actuator Level | Current Rating (Amps) | Features | Actuator Type | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | Thermoplastic | 0.37 in | 9.4 mm | 2000 Cycles | 2000 Steps | Copper Alloy | 2.54 mm | 0.1 " | 0.195 in | 4.95 mm | 85 °C | -40 C | Through Hole | 24 VDC | SPST | PC Pin | Gold | Flush Recessed | 25 mA | Tape Seal | Slide (Standard) |
