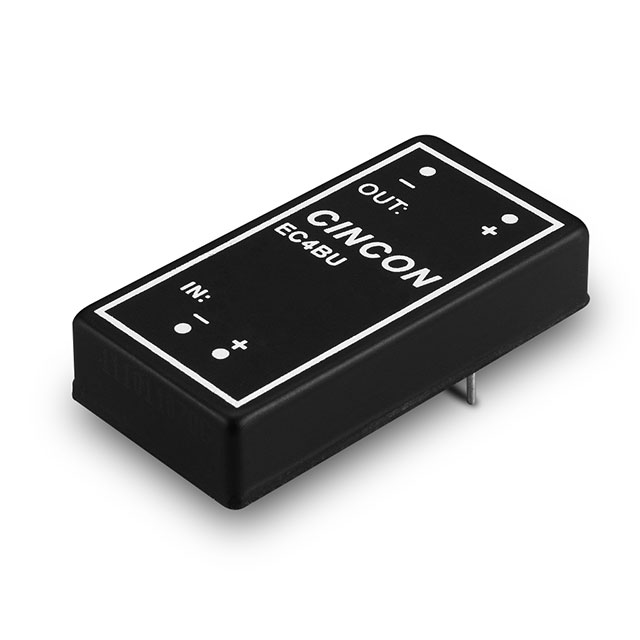

EC4BU Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

CONVERTER: DC/DC; 10W; UIN: 9÷18VDC; UOUT: 15VDC; 15V; UOUT2: -15VDC

Part	Type	Current - Output (Max)	Voltage - Output 2	Approval Agency	Voltage - Output 1	Size / Dimension	Features	Efficiency	Power (Watts)	Standard Number	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Isolation	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Control Features	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Cincon Electronics Co. LTD EC4BU-12D15	Isolated Module	333 mA	-15 V	CE	15 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	OCP OVP SCP UVLO	87 %	10 W	60950-1	2	9 V	18 V	1.5 kV	ITE (Commercial)	Through Hole	105 C	-40 °C	6-DIP Module
Cincon Electronics Co. LTD EC4BU-48D15T	Isolated Module	333 mA	-15 V	CE	15 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	OCP OVP Remote On/Off SCP UVLO	87 %	10 W	60950-1	2	36 V	75 V	1.5 kV	ITE (Commercial)	Through Hole	105 C	-40 °C	6-DIP Module	Active High Enable
Cincon Electronics Co. LTD EC4BU-12S33	Isolated Module			CE	3.3 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	OCP OVP SCP UVLO		8.3 W	60950-1	1	9 V	18 V	1.5 kV	ITE (Commercial)	Through Hole	105 C	-40 °C	6-DIP Module		2.5 A
Cincon Electronics Co. LTD EC4BU-24D12T	Isolated Module		-12 V	CE	12 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	OCP OVP Remote On/Off SCP UVLO	87 %	10 W	60950-1	2	18 V	36 V	1.5 kV	ITE (Commercial)	Through Hole	105 C	-40 °C	6-DIP Module	Active High Enable	416 mA	416 mA
Cincon Electronics Co. LTD EC4BU-12D12	Isolated Module		-12 V	CE	12 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	OCP OVP SCP UVLO	87 %	10 W	60950-1	2	9 V	18 V	1.5 kV	ITE (Commercial)	Through Hole	105 C	-40 °C	6-DIP Module		416 mA	416 mA
Cincon Electronics Co. LTD EC4BU-24S15	Isolated Module			CE	15 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	OCP OVP SCP UVLO	87 %	10 W	60950-1	1	18 V	36 V	1.5 kV	ITE (Commercial)	Through Hole	105 C	-40 °C	6-DIP Module		666 mA
Cincon Electronics Co. LTD EC4BU-12S05A	Isolated Module			CE	5 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	OCP OVP SCP UVLO	85 %	10 W	60950-1	1	9 V	18 V	1.5 kV	ITE (Commercial)	Through Hole	105 C	-40 °C	6-DIP Module		2 A
Cincon Electronics Co. LTD EC4BU-48D15	Isolated Module	333 mA	-15 V	CE	15 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	OCP OVP SCP UVLO	87 %	10 W	60950-1	2	36 V	75 V	1.5 kV	ITE (Commercial)	Through Hole	105 C	-40 °C	6-DIP Module
Cincon Electronics Co. LTD EC4BU-12S33T	Isolated Module			CE	3.3 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	OCP OVP Remote On/Off SCP UVLO		8.3 W	60950-1	1	9 V	18 V	1.5 kV	ITE (Commercial)	Through Hole	105 C	-40 °C	6-DIP Module	Active High Enable	2.5 A
Cincon Electronics Co. LTD EC4BU-24S33A	Isolated Module			CE	3.3 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	OCP OVP SCP UVLO		8.3 W	60950-1	1	18 V	36 V	1.5 kV	ITE (Commercial)	Through Hole	105 C	-40 °C	6-DIP Module		2.5 A
