28343 Series
Manufacturer: Phoenix Contact
Beta
⌘K
RELAY GEN PURPOSE SPDT 12A 24V
| Part | Coil Resistance | Release Time | Coil Current | Contact Form | Termination Style | Contact Rating (Current) | Coil Type | Features | Contact Material | Mounting Type | Coil Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Switching Voltage | Relay Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 1263 Ohms | 10 ms | 19 mA | SPDT (1 Form C) | Screw Terminal | 12 A | Non Latching | Diode Lighted Indicator Socket Included | Silver Nickel (AgNi) | DIN Rail | 24 VDC | -25 °C | 60 °C | 8 ms | 250 VAC 250 VDC | General Purpose | |
 Phoenix Contact | 923 Ohms | 14 ms | 26 mA | SPDT (1 Form C) | Screw Terminal | 12 A | Non Latching | Lighted Indicator Socket Included Varistor | Silver Nickel (AgNi) | DIN Rail | 24 VAC | -25 °C | 60 °C | 12 ms | 250 VAC 250 VDC | General Purpose | |
 Phoenix Contact | 41.82 kOhms | 22 ms | 5.5 mA | SPDT (1 Form C) | Screw Terminal | 12 A | Non Latching | Lighted Indicator Varistor | Silver Nickel (AgNi) | DIN Rail | 230 VAC | -25 °C | 60 °C | 12 ms | 250 VAC 250 VDC | General Purpose | |
 Phoenix Contact | 17.1 kOhms | 16 ms | 7 mA | SPDT (1 Form C) | Screw Terminal | 12 A | Non Latching | Lighted Indicator Socket Included Varistor | Silver Nickel (AgNi) | DIN Rail | 120 VAC | -25 °C | 60 °C | 12 ms | 250 VAC 250 VDC | General Purpose | |

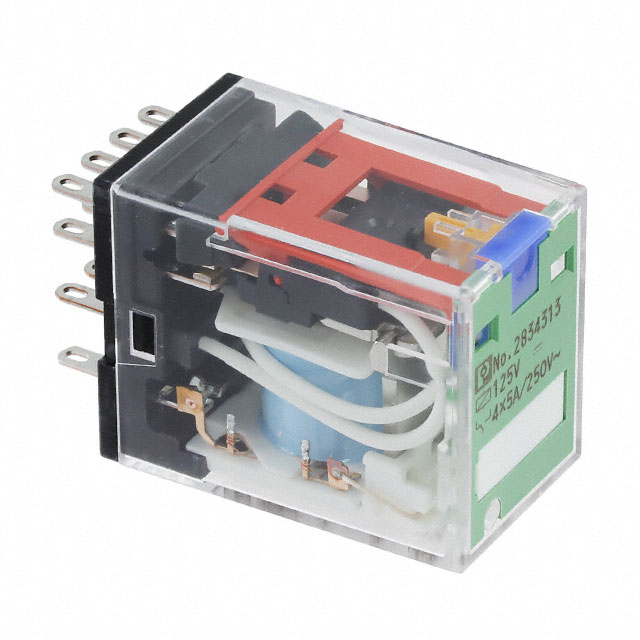

 Phoenix Contact | 17.38 kOhms | 5 ms | 7.2 mA | 4PDT (4 Form C) | Plug In | 5 A | Non Latching | Diode Lighted Indicator Test Button | Gold (Au) Silver Nickel (AgNi) | Socketable | 125 VDC | -55 C | 70 °C | 13 ms | 250 VAC 250 VDC | General Purpose | cULus EAC UL VDE |
