DPD-25 Series
Manufacturer: Adam Tech
Beta
⌘K

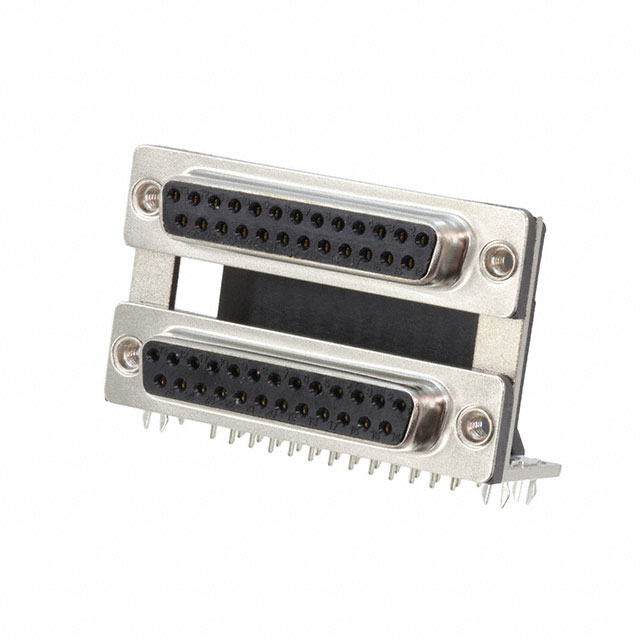

CONN D-TYPE RCPT 25POS R/A SLDR
| Part | Contact Form | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Dielectric Material | Connector Style | Termination | Shell Size, Connector Layout | Number of Rows [custom] | Current Rating (Amps) | Number of Positions | Connector Type | Contact Finish Thickness | Shell Material, Finish | Features | Mounting Type | Flange Feature | Flange Feature | Material Flammability Rating | Contact Finish | Backset Spacing | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Stamped | Copper Alloy | -55 C | 85 °C | Black | 250 VAC | Polybutylene Terephthalate (PBT) | D-Type - Stacked | Solder | 3 (DB B) | 2 | 3 A | 25 | Receptacle Female Sockets | Flash | Nickel Plated Steel | Board Lock Mounting Brackets | Right Angle Through Hole | Housing/Shell | 4-40 | UL94 V-0 | Gold | 8.08 mm | 0.318 " |
 Adam Tech | Stamped | Copper Alloy | -55 C | 85 °C | Black | 250 VAC | Polybutylene Terephthalate (PBT) | D-Type - Stacked | Solder | 3 (DB B) | 2 | 3 A | 25 | Plug Male Pins Receptacle Female Sockets | Nickel Plated Steel | Board Lock Grounding Indents Mounting Brackets | Right Angle Through Hole | Housing/Shell | 4-40 | UL94 V-0 | Gold | 8.08 mm | 0.318 " |
