PRPN022 Series

Catalog

CONN HEADER SMD 4POS 2MM

Part	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Insulation Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Connector Type	Contact Shape	Contact Length - Mating	Contact Length - Mating	Number of Positions	Contact Type	Contact Finish - Mating	Insulation Material	Contact Finish - Post	Shrouding	Fastening Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Style	Features	Mounting Type	Termination	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [custom]	Contact Length - Post	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions PRPN022MAMP	Flash	0.059 in	1.5 mm	Black	Brass	-40 C	105 ░C	2	Header	Square	4 mm	0.157 in	4	Male Pin	Gold	Polyester	Gold	Unshrouded	Push-Pull	All	0.079 "	2 mm	Board to Board Cable	Board Guide	Surface Mount	Solder	Flash	2 mm	0.079 in	UL94 V-0

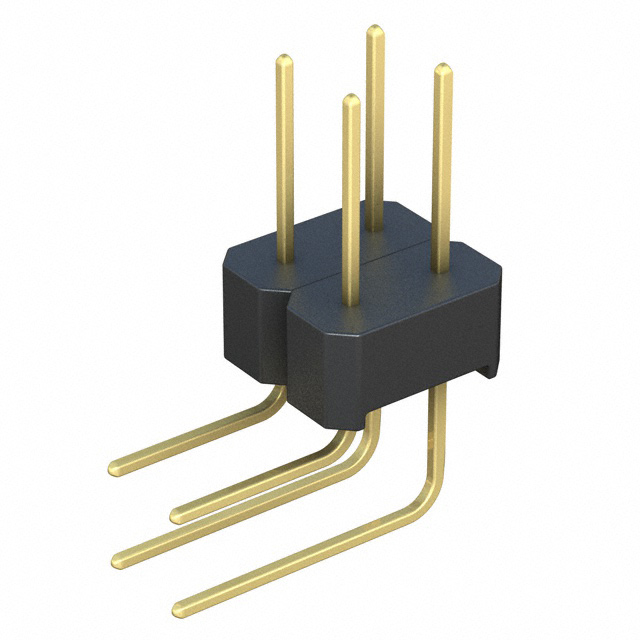

Sullins Connector Solutions PRPN022PARN	Flash			Black	Brass	-40 C	105 ░C	2	Header	Square	4 mm	0.157 in	4	Male Pin	Gold	Polyester	Gold	Unshrouded	Push-Pull	All	0.079 "	2 mm	Board to Board Cable		Right Angle Through Hole	Solder	Flash	2 mm	0.079 in	UL94 V-0	4 mm	0.157 in	0.11 in	2.79 mm

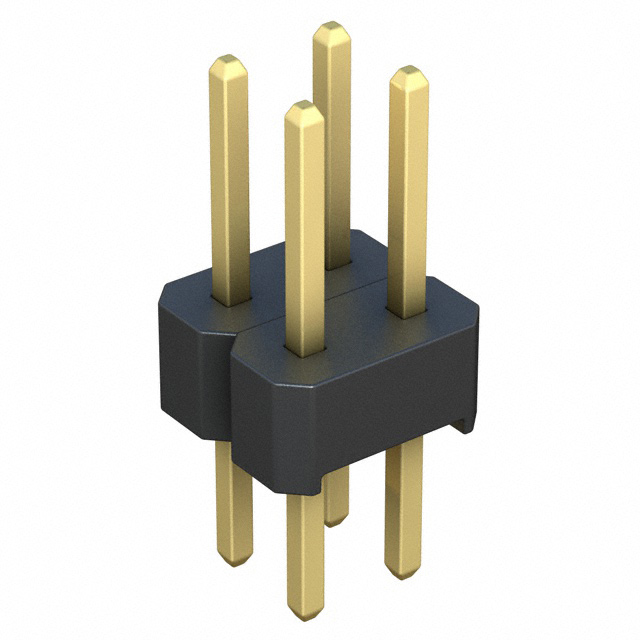

Sullins Connector Solutions PRPN022PAEN	Flash			Black	Brass	-40 C	105 ░C	2	Header	Square	4 mm	0.157 in	4	Male Pin	Gold	Polyester	Gold	Unshrouded	Push-Pull	All	0.079 "	2 mm	Board to Board Cable		Through Hole	Solder	Flash	2 mm	0.079 in	UL94 V-0	2 mm	0.079 in	0.11 in	2.79 mm	8.8 mm	0.346 in
