317-008 Series
Manufacturer: EDAC Inc.
Beta
⌘K

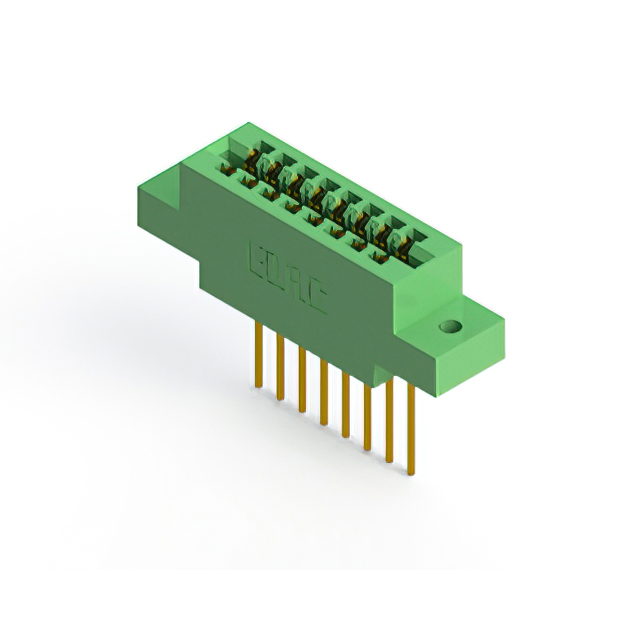

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 8 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Read Out | Contact Finish | Card Type | Color | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Number of Rows [custom] | Pitch | Pitch | Number of Positions | Gender | Termination | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | Single | Gold | Non Specified - Dual Edge | Green | 0.25 Ám | 10 Áin | Copper Alloy | -65 ░C | 125 °C | 8 | 2 | 3.96 mm | 0.156 in | 16 | Female | Wire Wrap | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever |
