NAA-111 Series

Catalog

SWITCH ROCKER SPST 16A 125V

Part	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style	Actuator Marking	Color - Actuator/Cap	Switch Function	Voltage Rating - AC	Features	Actuator Type	Circuit	Current Rating (Amps)
CW Industries NAA-111-BI31-00	Panel Mount Snap-In	13.97 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	No Marking	Black Red	On-Off	125 V	Two-Tone Rocker	Concave (Curved)	SPST	16 A
CW Industries NAA-111-BI24-00	Panel Mount Snap-In	13.97 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	O -	Black Blue	On-Off	125 V	Two-Tone Rocker	Concave (Curved)	SPST	16 A

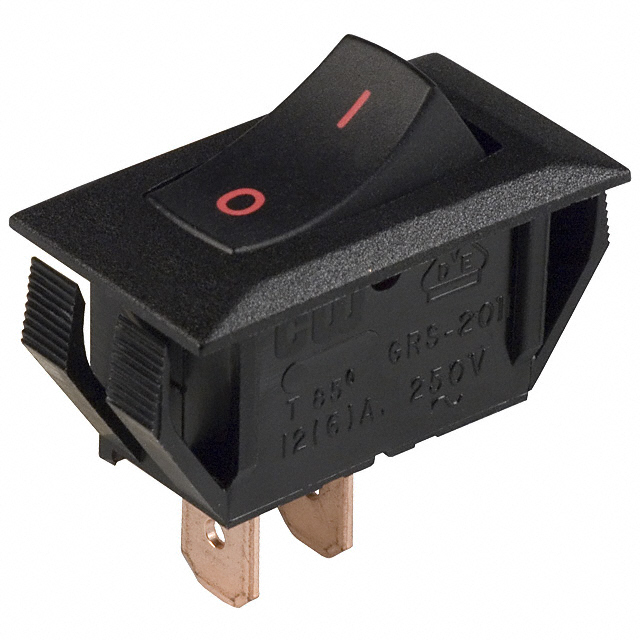

CW Industries NAA-111-BI21-00	Panel Mount Snap-In	13.97 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	O -	Black Red	On-Off	125 V	Two-Tone Rocker	Concave (Curved)	SPST	16 A
CW Industries NAA-111-BI23-00	Panel Mount Snap-In	13.97 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	O -	Black Green	On-Off	125 V	Two-Tone Rocker	Concave (Curved)	SPST	16 A
CW Industries NAA-111-BI13-00	Panel Mount Snap-In	13.97 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	OFF ON Vertical	Black Green	On-Off	125 V	Two-Tone Rocker	Concave (Curved)	SPST	16 A
CW Industries NAA-111-BI25-00	Panel Mount Snap-In	13.97 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	O -	Black Orange	On-Off	125 V	Two-Tone Rocker	Concave (Curved)	SPST	16 A
CW Industries NAA-111-BI11-00	Panel Mount Snap-In	13.97 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	OFF ON Vertical	Black Red	On-Off	125 V	Two-Tone Rocker	Concave (Curved)	SPST	16 A
CW Industries NAA-111-WI19-00	Panel Mount Snap-In	13.97 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	OFF ON Vertical	Orange White	On-Off	125 V	Two-Tone Rocker	Concave (Curved)	SPST	16 A
CW Industries NAA-111-BI14-00	Panel Mount Snap-In	13.97 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	OFF ON Vertical	Black Blue	On-Off	125 V	Two-Tone Rocker	Concave (Curved)	SPST	16 A
CW Industries NAA-111-BI15-00	Panel Mount Snap-In	13.97 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	OFF ON Vertical	Black Orange	On-Off	125 V	Two-Tone Rocker	Concave (Curved)	SPST	16 A
