2823203 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
10P,2MM,PL,SRVT,SMD,0.38AU,TR W/
| Part | Material Flammability Rating | Insulation Material | Contact Length - Mating | Contact Length - Mating | Style | Voltage Rating | Contact Finish - Mating | Contact Finish - Post | Pitch - Mating [x] | Pitch - Mating [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Current Rating (Amps) | Insulation Height [custom] | Insulation Height [custom] | Termination | Shrouding | Number of Positions | Fastening Type | Connector Type | Number of Positions Loaded | Contact Type | Features | Insulation Color | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

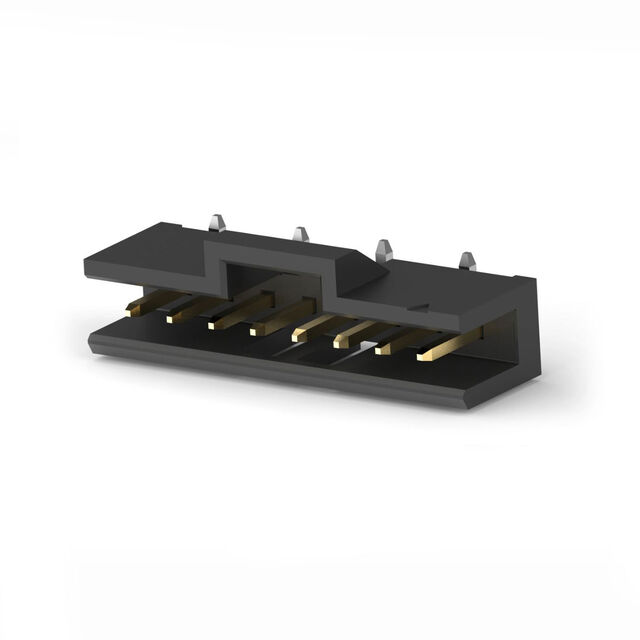

 TE Connectivity Raychem Cable Protection | UL94 V-0 | Thermoplastic | 4 mm | 0.157 in | Board to Board Cable | 125 VAC | Gold | Tin | 0.079 in | 2 mm | 157.5 Áin | 4 Ám | Phosphor Bronze | 125 °C | -40 °C | Surface Mount | 15 µin | 0.38 µm | Square | 2 A | 5.51 mm | 0.217 in | Solder | Shrouded - 2 Wall | 10 | Latch Holder | Header | All | Male Pin | Pick and Place | Black | 1 |
 TE Connectivity Raychem Cable Protection | UL94 V-0 | Thermoplastic | 4 mm | 0.157 in | Board to Board Cable | 125 VAC | Gold | Tin | 0.079 in | 2 mm | 157.5 Áin | 4 Ám | Phosphor Bronze | 125 °C | -40 °C | Surface Mount | 15 µin | 0.38 µm | Square | 2 A | 5.51 mm | 0.217 in | Solder | Shrouded - 2 Wall | 12 | Latch Holder | Header | All | Male Pin | Pick and Place | Black | 1 |
TE Connectivity Raychem Cable Protection | UL94 V-0 | Thermoplastic | 4 mm | 0.157 in | Board to Board Cable | 125 VAC | Gold | Tin | 0.079 in | 2 mm | 157.5 Áin | 4 Ám | Phosphor Bronze | 125 °C | -40 °C | Surface Mount | 15 µin | 0.38 µm | Square | 2 A | 5.51 mm | 0.217 in | Solder | Shrouded - 2 Wall | 8 | Latch Holder | Header | All | Male Pin | Pick and Place | Black | 1 |

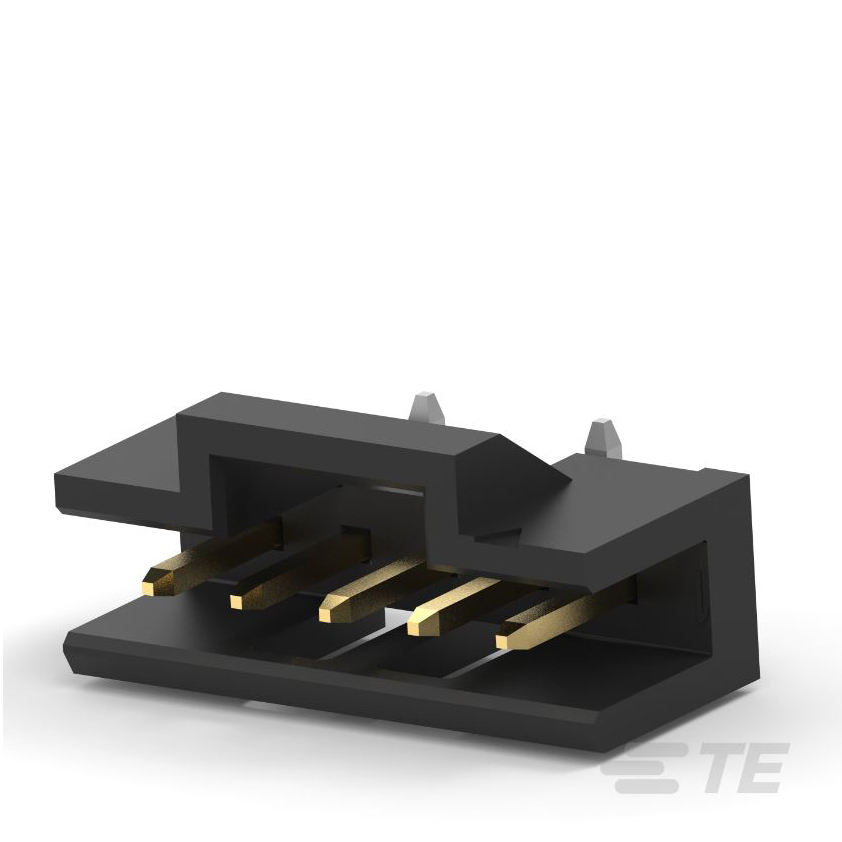

 TE Connectivity Raychem Cable Protection | UL94 V-0 | Thermoplastic | 4 mm | 0.157 in | Board to Board Cable | 125 VAC | Gold | Tin | 0.079 in | 2 mm | 157.5 Áin | 4 Ám | Phosphor Bronze | 125 °C | -40 °C | Surface Mount | 15 µin | 0.38 µm | Square | 2 A | 5.51 mm | 0.217 in | Solder | Shrouded - 2 Wall | 6 | Latch Holder | Header | All | Male Pin | Pick and Place | Black | 1 |
