TPS22950-Q1 Series

Automotive, 5.5-V 2.7-A 34-mΩ load switch with adjustable current limit

Catalog

Automotive, 5.5-V 2.7-A 34-mΩ load switch with adjustable current limit

Part	Supplied Contents	Primary Attributes [Max]	Primary Attributes [Min]	Utilized IC / Part	Type	Function	Secondary Attributes	Mounting Type	Fault Protection	Switch Type	Current - Output (Max) [Max]	Input Type	Output Type	Features	Number of Outputs	Ratio - Input:Output [custom]	Supplier Device Package	Interface	Rds On (Typ)	Output Configuration	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Qualification

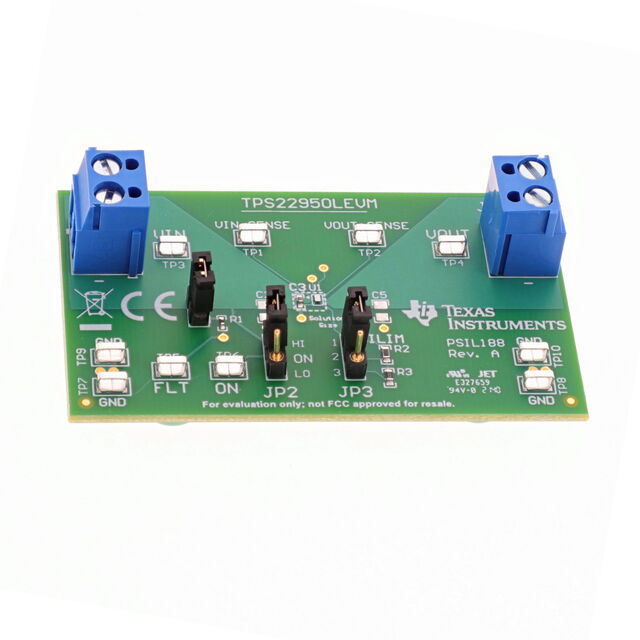

Texas Instruments TPS22950LEVM	Board(s)	5.5 V	1.8 V	TPS22950	Power Management	Power Distribution Switch (Load Switch)

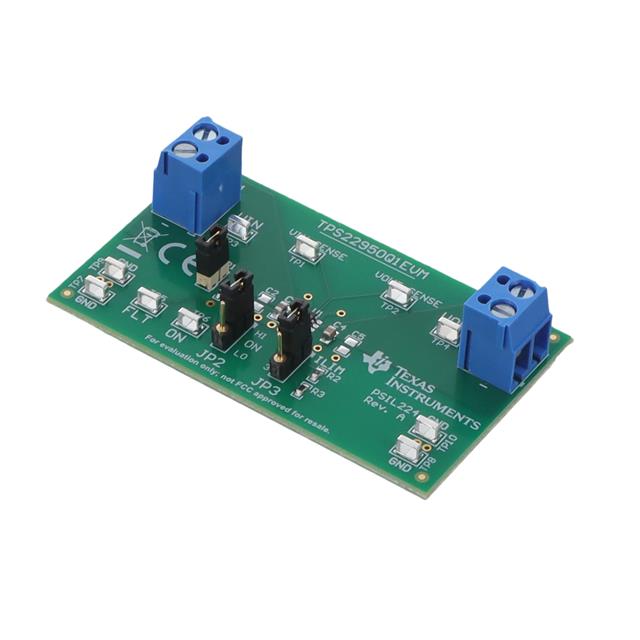

Texas Instruments TPS22950Q1EVM	Board(s)	5.5 V	1.8 V	TPS22950-Q1	Power Management	Power Distribution Switch (Load Switch)	On-Board Test Points

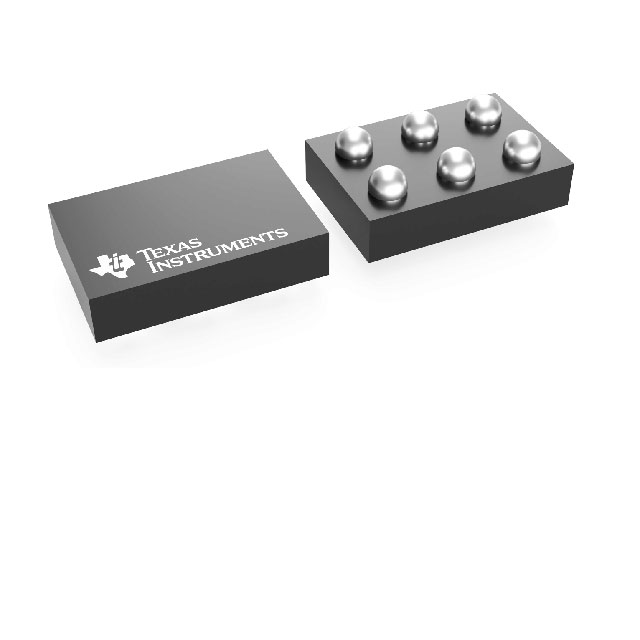

Texas Instruments TPS22950LYBHR								Surface Mount	Current Limiting (Adjustable) Over Temperature Reverse Current Short Circuit	General Purpose	2.7 A	Non-Inverting	P-Channel	Load Discharge	1	1:1	6-DSBGA (1.11x0.71)	On/Off	34 mOhm	High Side	1.8 V	5.5 V	6-XFBGA DSBGA	-40 °C	125 °C

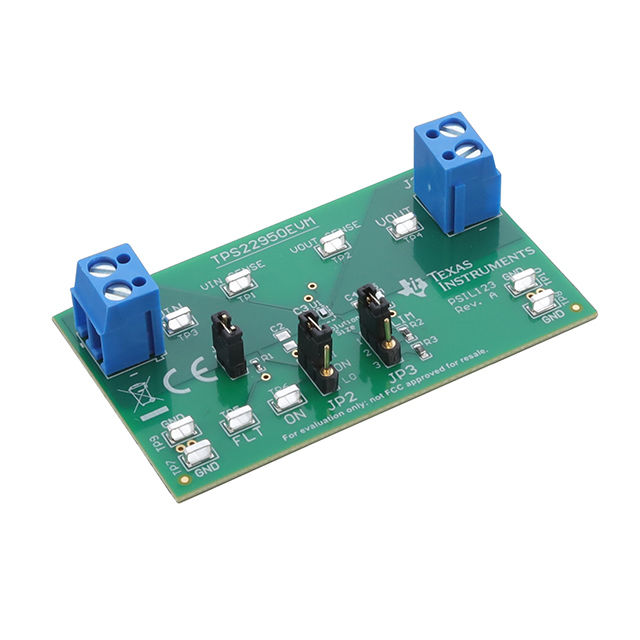

Texas Instruments TPS22950EVM	Board(s)			TPS22950	Power Management	Power Distribution Switch (Load Switch)
Texas Instruments TPS22950CQDDCRQ1								Surface Mount	Current Limiting (Fixed) Over Temperature Reverse Current Short Circuit	General Purpose	2.7 A	Non-Inverting	P-Channel	Load Discharge Status Flag	1	1:1	SOT-23-THIN	On/Off	34 mOhm	High Side	0 V	5.5 V	SOT-23-6 Thin TSOT-23-6	-40 °C	125 °C	Automotive	1.8 V	5.5 V	AEC-Q100
Texas Instruments TPS22950YBHR								Surface Mount	Current Limiting (Adjustable) Over Temperature Reverse Current Short Circuit	General Purpose	2.7 A	Non-Inverting	P-Channel		1	1:1	6-DSBGA (1.11x0.71)	On/Off	34 mOhm	High Side	1.8 V	5.5 V	6-XFBGA DSBGA	-40 °C	125 °C

Catalog

Automotive, 5.5-V 2.7-A 34-mΩ load switch with adjustable current limit

Key Features

• Qualified for automotive applicationsAEC-Q100 qualified:Device temperature grade 1: –40°C to 125°C ambient operating temperature rangeInput operating voltage range (VIN): 1.8 V – 5.5 VOutput current limit (ILIMIT): 0.05 A – 3.5 A (typ)Thermal shutdown (TSD)ON-resistance (RON):RONat VIN= 5 V: 34 mΩ (typ)RONat VIN= 3.3 V: 41 mΩ (typ)Slow turn-ON timing limits inrush current (typ):tONat VIN= 5 V: 832 µstONat VIN= 3.3 V: 695 µsAlways-ON true reverse current blocking (RCB)Fault indication (FLT)Quick output discharge (QOD): 130 ΩSmart ON pin pulldown (RPD,ON):ON ≥ VIH(ION): 50 nA (max)ON ≤ VIL(RPD,ON): 500 kΩ (typ)Low power consumption:ON state (IQ): 40 µA (typ)OFF state (ISD): 0.2 µA (typ)UL 2367 recognition – file no. E169910Certified from ILIM= 66 mA to 2.46 AQualified for automotive applicationsAEC-Q100 qualified:Device temperature grade 1: –40°C to 125°C ambient operating temperature rangeInput operating voltage range (VIN): 1.8 V – 5.5 VOutput current limit (ILIMIT): 0.05 A – 3.5 A (typ)Thermal shutdown (TSD)ON-resistance (RON):RONat VIN= 5 V: 34 mΩ (typ)RONat VIN= 3.3 V: 41 mΩ (typ)Slow turn-ON timing limits inrush current (typ):tONat VIN= 5 V: 832 µstONat VIN= 3.3 V: 695 µsAlways-ON true reverse current blocking (RCB)Fault indication (FLT)Quick output discharge (QOD): 130 ΩSmart ON pin pulldown (RPD,ON):ON ≥ VIH(ION): 50 nA (max)ON ≤ VIL(RPD,ON): 500 kΩ (typ)Low power consumption:ON state (IQ): 40 µA (typ)OFF state (ISD): 0.2 µA (typ)UL 2367 recognition – file no. E169910Certified from ILIM= 66 mA to 2.46 A

Description

The TPS22950x is a small, single channel load switch with robust protection against fault cases with adjustable output current limiting, reverse current blocking, and thermal shutdown. The switch ON state is controlled by a digital input that is capable of interfacing directly with low-voltage control signals. When power is first applied, a smart pulldown is used to keep the ON pin from floating until system sequencing is complete. After the pin is deliberately driven high (>VIH), the smart pulldown is disconnected to prevent unnecessary power loss. The TPS22950/C responds to overcurrent events with auto-retry behavior, while the TPS22950L uses a debounce time and latch off behavior. TPS22950x is available in a standard WCSP package and leaded SOT package characterized for operation over an ambient temperature range of –40°C to 125°C. The TPS22950x is a small, single channel load switch with robust protection against fault cases with adjustable output current limiting, reverse current blocking, and thermal shutdown. The switch ON state is controlled by a digital input that is capable of interfacing directly with low-voltage control signals. When power is first applied, a smart pulldown is used to keep the ON pin from floating until system sequencing is complete. After the pin is deliberately driven high (>VIH), the smart pulldown is disconnected to prevent unnecessary power loss. The TPS22950/C responds to overcurrent events with auto-retry behavior, while the TPS22950L uses a debounce time and latch off behavior. TPS22950x is available in a standard WCSP package and leaded SOT package characterized for operation over an ambient temperature range of –40°C to 125°C.
