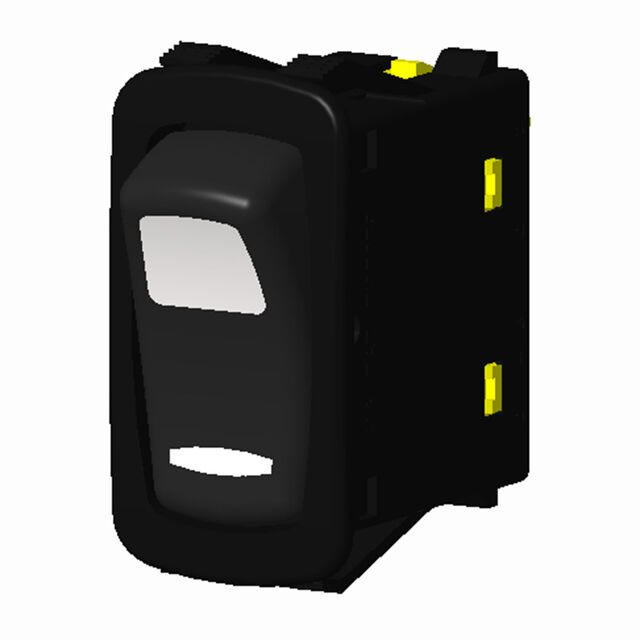

L11D1EHN1 Series
Manufacturer: Carling Technologies
Beta
⌘K
SWITCH ROCKER SPST 20A 12V
| Part | Current Rating (Amps) | Switch Function | Electrical Life | Circuit | Illumination Voltage (Nominal) | Voltage Rating - DC | Termination Style | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Ingress Protection | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Mechanical Life | Illumination Type, Color | Actuator Type | Actuator Marking | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Carling Technologies | 20 A | On-Off | 100000 Cycles | SPST | 12 VDC | 12 V | Quick Connect - 0.250" (6.3mm) | 44.04 mm | 22.02 mm | IP67 - Dust Tight Waterproof | Panel Mount Snap-In | 85 °C | -40 °C | 100000 Cycles | Amber/Green LED | Actuator Arm Cap Required - Illuminated | No Marking | |
Carling Technologies | 20 A | On-Off | 100000 Cycles | SPST | 12 VDC | 12 V | Quick Connect - 0.250" (6.3mm) | 44.04 mm | 22.02 mm | IP67 - Dust Tight Waterproof | Panel Mount Snap-In | 85 °C | -40 °C | 100000 Cycles | Amber/Green LED | Concave (Curved) - Illuminated | Low Beam Vertical | |
Carling Technologies | 20 A | On-Off | 100000 Cycles | SPST | 12 VDC | 12 V | Quick Connect - 0.250" (6.3mm) | 44.04 mm | 22.02 mm | IP67 - Dust Tight Waterproof | Panel Mount Snap-In | 85 °C | -40 °C | 100000 Cycles | Amber/Green LED | Paddle - Illuminated | No Marking | Black |
 Carling Technologies | 20 A | On-Off | 100000 Cycles | SPST | 12 VDC | 12 V | Quick Connect - 0.250" (6.3mm) | 44.04 mm | 22.02 mm | IP67 - Dust Tight Waterproof | Panel Mount Snap-In | 85 °C | -40 °C | 100000 Cycles | Amber/Green LED | Concave (Curved) - Illuminated | No Marking | Black |
