505004 Series

Manufacturer: Molex

Catalog

SLIMSTACK BOARD-TO-BOARD CONNECTOR, 0.40MM PITCH, BATTERY SERIES, RECEPTACLE, 0.75MM MATED HEIGHT, 2.50MM MATED WIDTH, 8 CIRCUITS, 6.0A

Part	Mated Stacking Heights	Number of Positions	Contact Finish	Mounting Type	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Connector Type	Features	Number of Rows [custom]
Molex 5050040812	0.8 mm	8	Gold	Surface Mount	0.75 mm	0.03 in	0.4 mm	0.016 in	Receptacle Center Strip Contacts	Pick and Place Solder Retention	2

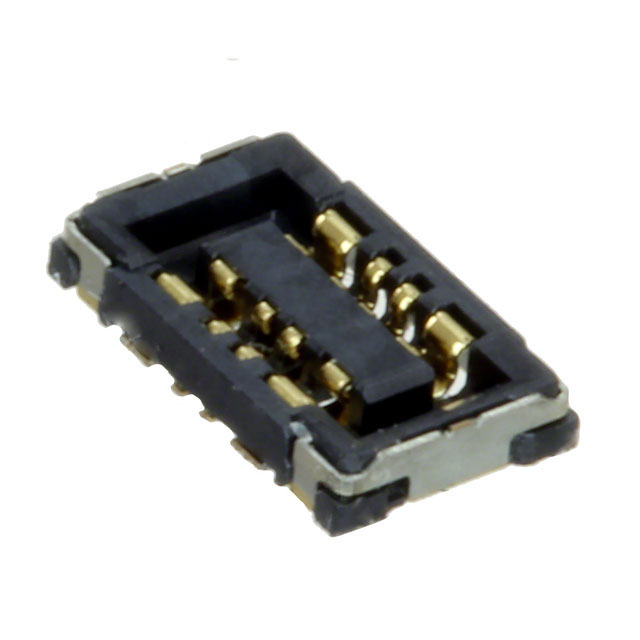

Molex 5050040810	0.8 mm	8	Gold	Surface Mount	0.75 mm	0.03 in			Receptacle Center Strip Contacts	Solder Retention	2
Molex 5050040820	0.8 mm	8	Gold	Surface Mount	0.75 mm	0.03 in	0.4 mm	0.016 in	Receptacle Center Strip Contacts	Pick and Place Solder Retention	2
