RJSBE538 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

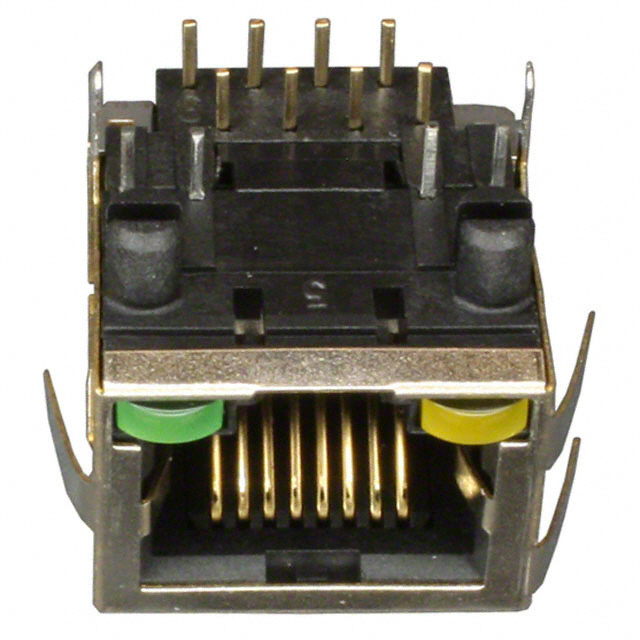

CONN MOD JACK 8P8C R/A SHLD
| Part | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | LED Color | Contact Finish | Mounting Type | Number of Ports | Termination | Number of Positions/Contacts | Shielding | Features | Number of Rows | Orientation | Connector Type | Tab Direction | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | Green - Green | Gold | Through Hole | 1 | Solder | 8p8c (RJ45 Ethernet) | EMI Finger Shielded | Board Lock | 1 | 90 ° | Jack | Down | Phosphor Bronze |
 Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | Yellow - Green | Gold | Through Hole | 1 | Solder | 8p8c (RJ45 Ethernet) | EMI Finger Shielded | Board Lock | 1 | 90 ° | Jack | Down | Phosphor Bronze |
 Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | Red Yellow | Gold | Through Hole | 4 | Solder | 8p8c (RJ45 Ethernet) | EMI Finger Shielded | Board Lock | 1 | 90 ° | Jack | Down | Phosphor Bronze |
Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | Green Yellow - Green | Gold | Through Hole | 4 | Solder | 8p8c (RJ45 Ethernet) | EMI Finger Shielded | Board Lock | 1 | 90 ° | Jack | Down | Phosphor Bronze |
 Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | Yellow - Green | Gold | Through Hole | 2 | Solder | 8p8c (RJ45 Ethernet) | EMI Finger Shielded | Board Lock | 1 | 90 ° | Jack | Down | Phosphor Bronze |
Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | Green Yellow - Yellow | Gold | Through Hole | 4 | Solder | 8p8c (RJ45 Ethernet) | EMI Finger Shielded | Board Lock | 1 | 90 ° | Jack | Down | Phosphor Bronze |
Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | Red - Red | Gold | Through Hole | 4 | Solder | 8p8c (RJ45 Ethernet) | EMI Finger Shielded | Board Lock | 1 | 90 ° | Jack | Down | Phosphor Bronze |
Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | Green Yellow | Gold | Through Hole | 2 | Solder | 8p8c (RJ45 Ethernet) | EMI Finger Shielded | Board Lock | 1 | 90 ° | Jack | Down | Phosphor Bronze |
Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | Green - Green | Gold | Through Hole | 2 | Solder | 8p8c (RJ45 Ethernet) | EMI Finger Shielded | Board Lock | 1 | 90 ° | Jack | Down | Phosphor Bronze |
Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | Green Red | Gold | Through Hole | 4 | Solder | 8p8c (RJ45 Ethernet) | EMI Finger Shielded | Board Lock | 1 | 90 ° | Jack | Down | Phosphor Bronze |
