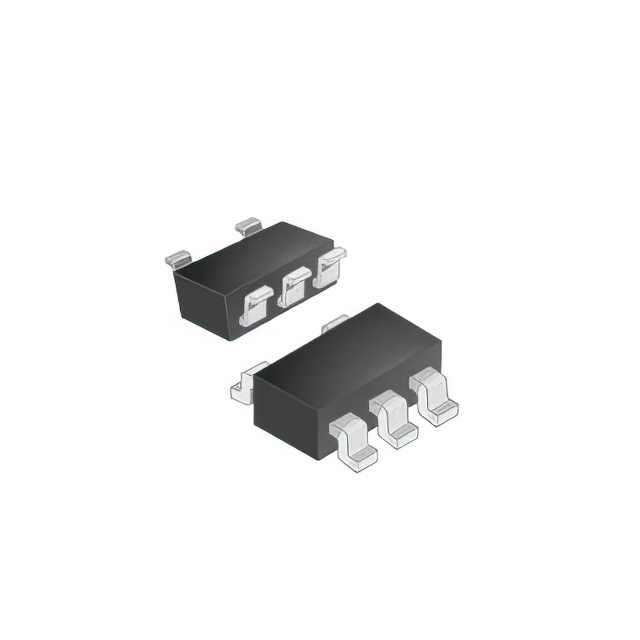

GLF81311 Series
Manufacturer: GLF Integrated Power
Beta
⌘K
NANO-CURRENT CONSUMED POWER SWIT
| Part | Number of Outputs | Voltage - Load [Max] | Voltage - Load [Min] | Ratio - Input:Output | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) [Max] | Switch Type | Rds On (Typ) | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GLF Integrated Power | 1 | 6.5 V | 2 V | 1:1 | SOT-23-5 | 85 °C | -40 C | SC-74A SOT-753 | Not Required | 3 A | General Purpose | 41 mOhm | Load Discharge Slew Rate Controlled | Surface Mount |
