HLMP-4015 Series
Manufacturer: Broadcom Limited
Beta
⌘K

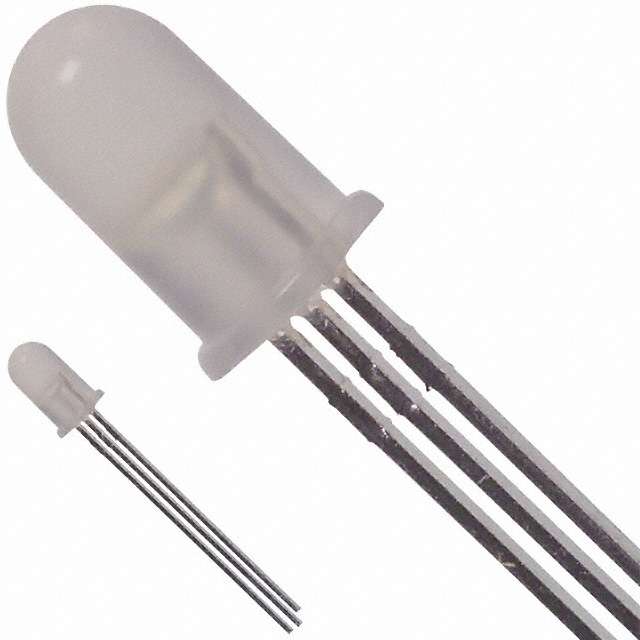

LED GRN/YLW CLEAR T-1 3/4 T/H
| Part | Lens Size | Lens Size | Configuration | Supplier Device Package | Viewing Angle | Lens Color | Lens Transparency | Voltage - Forward (Vf) (Typ) | Lens Style | Wavelength - Dominant | Color | Package / Case | Height (Max) [Max] [z] | Mounting Type | Wavelength - Peak | Current - Test | Millicandela Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | T-1 3/4 | 5 mm | Common Cathode | T-1 3/4 | 65 ° | Colorless | Clear | 2.2 V 2.6 V | Round with Domed Top | 570 nm 585 nm | Green Yellow | Radial - 3 Leads | 9.19 mm | Through Hole | 568 nm 583 nm | 20 mA 20 mA | 20mcd Green 20mcd Yellow |
