UCC285 Series
Manufacturer: Texas Instruments
Beta
⌘K

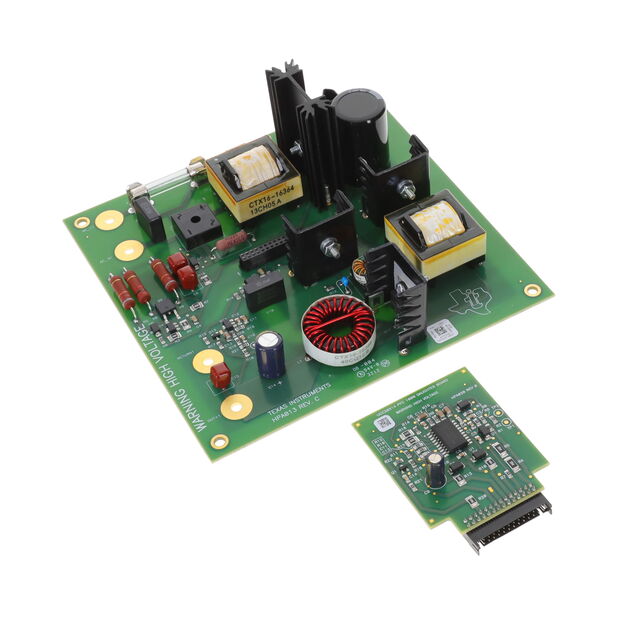

EVAL MODULE FOR UCC28514
| Part | Supplied Contents | Type | Function | Utilized IC / Part | Contents | Power - Output | Board Type | Outputs and Type | Outputs and Type | Current - Output | Main Purpose | Regulator Topology | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | Power Management | Power Factor Correction | UCC28514 | Board(s) | ||||||||||
 Texas Instruments | Board(s) | Power Management | Power Factor Correction | UCC28528 | Board(s) | ||||||||||

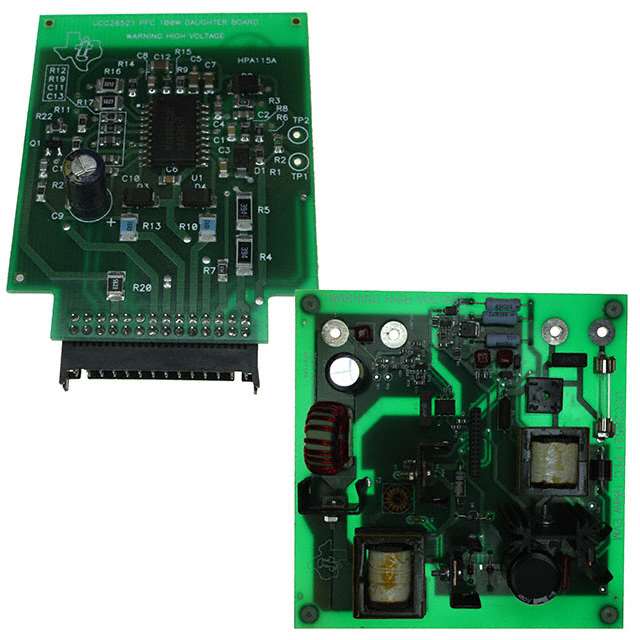

 Texas Instruments | Board(s) | UCC28521 | Board(s) | 100 W | Fully Populated | 1 Isolated Output Isolated | 1 | 8.33 A | AC/DC Primary Side | Flyback | 12 V | 265 VAC | 85 VAC |
