747913 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

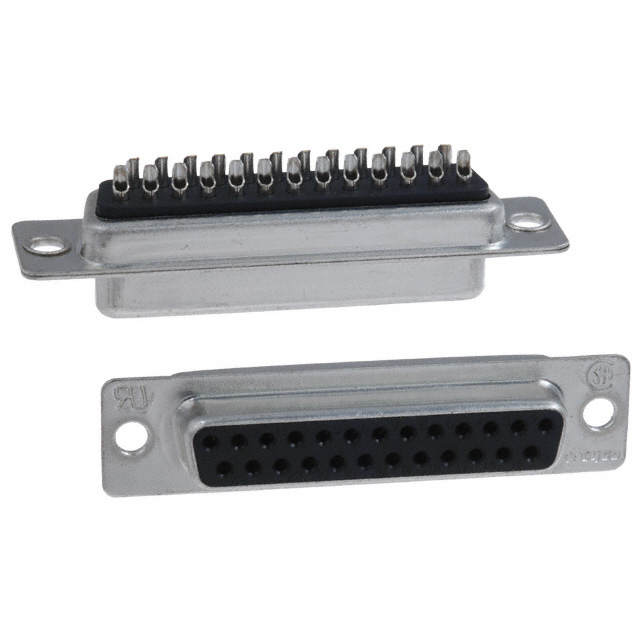

CONN D-SUB RCPT 25POS SLDR CUP
| Part | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Current Rating (Amps) | Number of Positions | Mounting Type | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Connector Type | Connector Style | Number of Rows [custom] | Contact Type | Material Flammability Rating | Contact Finish | Flange Feature | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Glass Filled | Brass | -55 C | 105 ░C | Black | 250 V | 3 A | 25 | Free Hanging (In-Line) | B DB | 3 | Receptacle Female Sockets | D-Sub | 2 | Signal | UL94 V-0 | Gold | Housing/Shell (Unthreaded) | 0.203 çm | 8 µin |
TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Glass Filled | Brass | -55 C | 105 ░C | Black | 250 V | 3 A | 25 | Free Hanging (In-Line) | B DB | 3 | Receptacle Female Sockets | D-Sub | 2 | Signal | UL94 V-0 | Gold | Housing/Shell (Unthreaded) | 0.203 çm | 8 µin |
