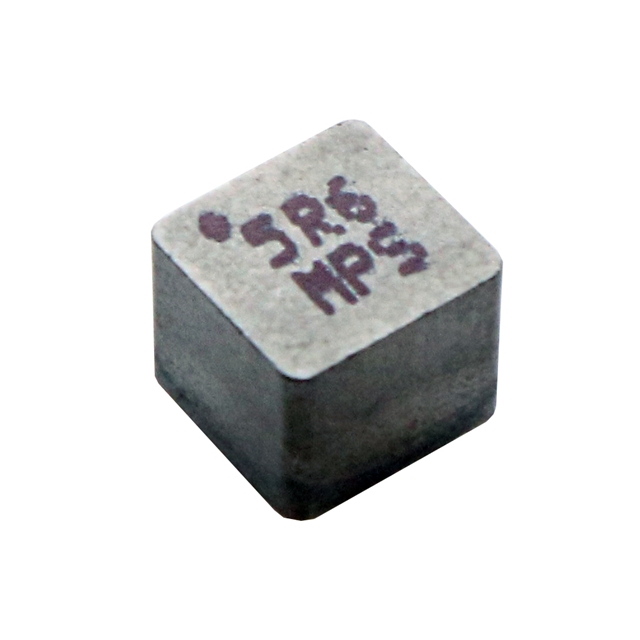

MPL-AL5050 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
POWER INDUCTOR (SMD), 5.6 ΜH, 6.8 A, SHIELDED, 8 A, MPL-AL SERIES
| Part | Current Rating (Amps) | DC Resistance (DCR) | Package / Case | Current - Saturation (Isat) | Operating Temperature [Min] | Operating Temperature [Max] | Inductance Frequency - Test | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance | Mounting Type | Shielding | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | 6.8 A | 20 mOhm | 2-SMD | 8 A | -40 C | 155 C | 100 kHz | 0.217 in | 0.209 in | 5.3 mm | 5.5 mm | 0.197 in | 5 mm | 5.6 µH | Surface Mount | Unshielded | Molded |
 Monolithic Power Systems Inc. | 4.8 A | 37 mOhm | 2-SMD | 5.5 A | -40 C | 155 C | 100 kHz | 0.217 in | 0.209 in | 5.3 mm | 5.5 mm | 0.197 in | 5 mm | 10 µH | Surface Mount | Unshielded | Molded |
Monolithic Power Systems Inc. | 6.1 A | 25 mOhm | 2-SMD | 7.6 A | -40 C | 155 C | 100 kHz | 0.217 in | 0.209 in | 5.3 mm | 5.5 mm | 0.197 in | 5 mm | 6.8 µH | Surface Mount | Unshielded | Molded |
Monolithic Power Systems Inc. | 5.8 A | 28 mOhm | 2-SMD | 7.2 A | -40 C | 155 C | 100 kHz | 0.217 in | 0.209 in | 5.3 mm | 5.5 mm | 0.197 in | 5 mm | 8.2 µH | Surface Mount | Unshielded | Molded |
