725-078 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 78POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Card Type	Number of Positions	Number of Rows [custom]	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Material	Termination	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Color	Read Out	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row
EDAC Inc. 725-078-522-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	78	2	Gold	Cantilever	30 Áin	0.76 Ám	Through Hole	Copper Alloy	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Black	Dual	Female	-40 C	105 ░C	39

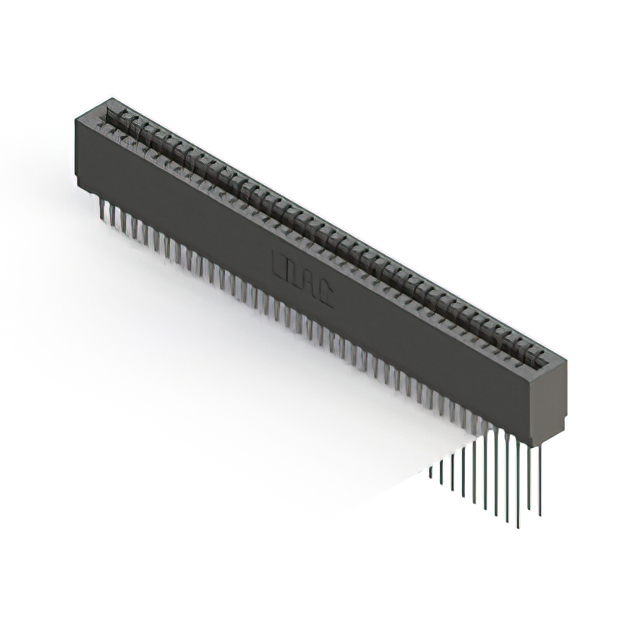

EDAC Inc. 725-078-541-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	78	2	Gold	Cantilever	30 Áin	0.76 Ám	Through Hole	Copper Alloy	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Black	Dual	Female	-40 C	105 ░C	39

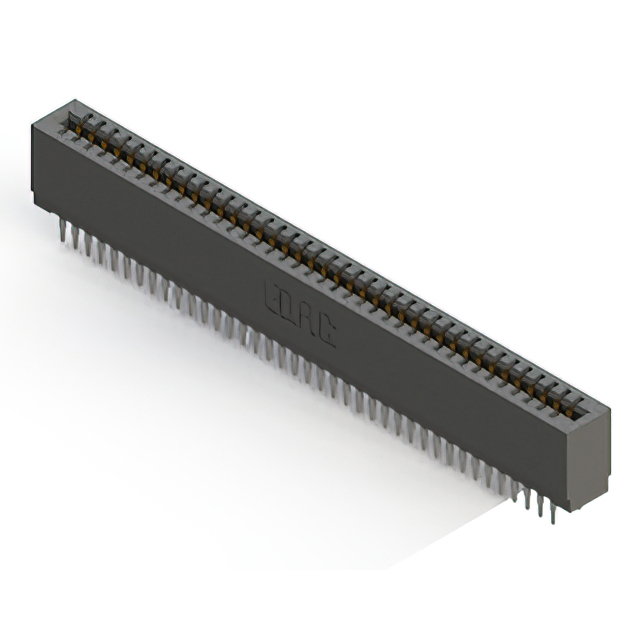

EDAC Inc. 725-078-525-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	78	2	Gold	Cantilever	30 Áin	0.76 Ám	Through Hole	Copper Alloy	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Black	Dual	Female	-40 C	105 ░C	39
EDAC Inc. 725-078-540-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	78	2	Gold	Cantilever	30 Áin	0.76 Ám	Through Hole	Copper Alloy	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Black	Dual	Female	-40 C	105 ░C	39
