GBC27D Series

Catalog

CONN HEADER SMD 54POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Number of Positions	Pitch - Mating	Pitch - Mating	Insulation Material	Insulation Color	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Mating	Number of Rows [custom]	Number of Positions Loaded	Insulation Height	Insulation Height	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Connector Type	Contact Length - Mating	Contact Length - Mating	Contact Type	Style	Termination	Fastening Type

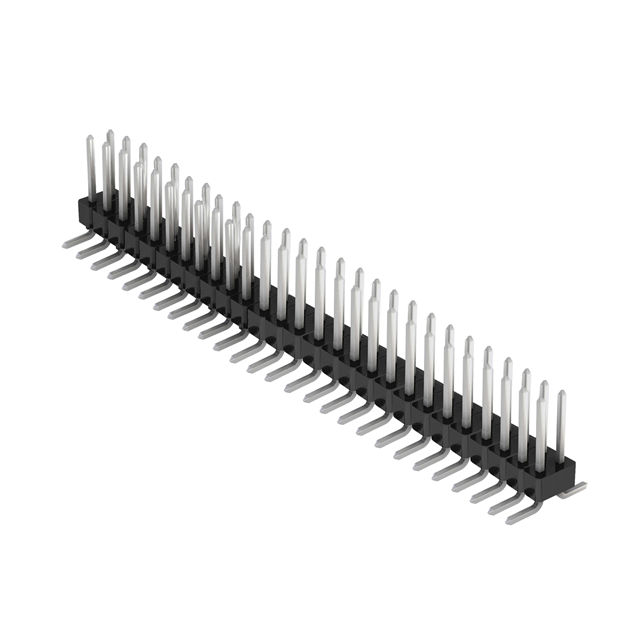

Sullins Connector Solutions GBC27DABN-M30	2.54 µm	100 µin	Tin	54	0.1 "	2.54 mm	Nylon 9T Polyamide (PA9T)	Black	UL94 V-0	0.1 in	2.54 mm	Surface Mount	Unshrouded	0.25 µm	10 µin	Phosphor Bronze	Gold	2	All	0.1 in	2.54 mm	3 A	150 °C	-65 ░C	Square	Header Breakaway	0.23 in	5.84 mm	Male Pin	Board to Board Cable	Solder	Push-Pull
