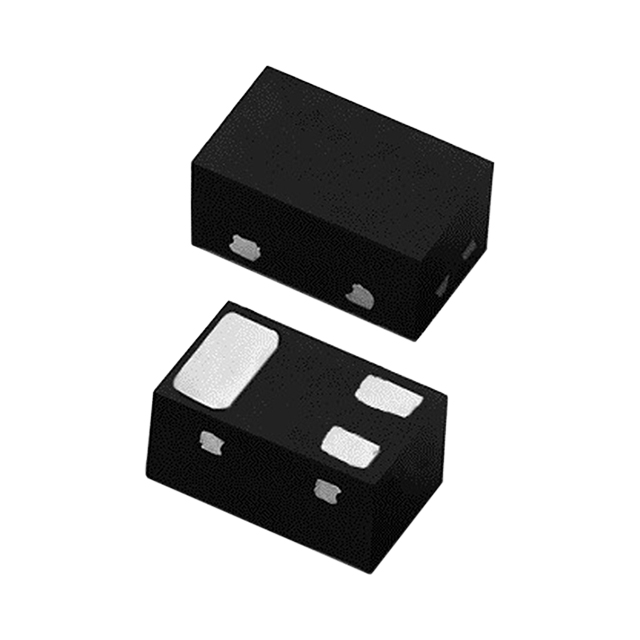

SP3222-02ETG Series

2Ch 30KV 3.3V 0.9pF TVS SOD883

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

2Ch 30KV 3.3V 0.9pF TVS SOD883

Part	Mounting Type	Power - Peak Pulse	Package / Case	Applications	Type	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp	Power Line Protection	Supplier Device Package	Current - Peak Pulse (10/1000µs)	Unidirectional Channels	Voltage - Reverse Standoff (Typ)	Operating Temperature [Min]	Operating Temperature [Max]
Littelfuse/Commercial Vehicle Products SP3222-02ETG	Surface Mount	30 W	3-UFDFN	USB	Zener	6.1 V	10 V		SOD-883	3 A	2	3.3 V	-40 °C	125 °C

Catalog

2Ch 30KV 3.3V 0.9pF TVS SOD883

Key Features

• ESD protection of ±30kV contact discharge, ±30kV air discharge, (IEC61000-4-2)

• EFT, IEC61000-4-4, 40A (5/50ns)

• Lightning protection, IEC61000-4-5 2nd edition, 3A (tp=8/20μs)

• Low capacitance of 0.9pF @ VR=0V (MAX)

• Space efficient 0402 (SOD883) footprint

• Extremely low dynamic resistance (0.17Ω TYP)

• Moisture Sensitivity Level (MSL-1)

• AEC-Q101 qualified

• Lead-free, halogen-free, and RoHS compliant

Description

The SP3222 includes low capacitance rail to rail diodes with an additional Zener diode to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes above the maximum level specified in the IEC61000-4-2 international standard (±30kV contact discharge) without performance degradation. The low loading capacitance makes it ideal for protecting high speed data lines such as DVI, USB2.0, USB3.0 and eSATA.
