CPMCTNC Series
Manufacturer: Cinch Connectivity Solutions AIM-Cambridge
Catalog

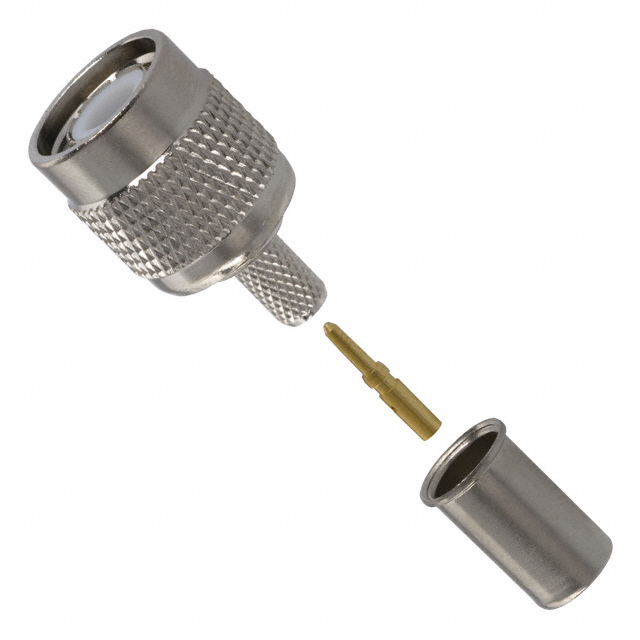

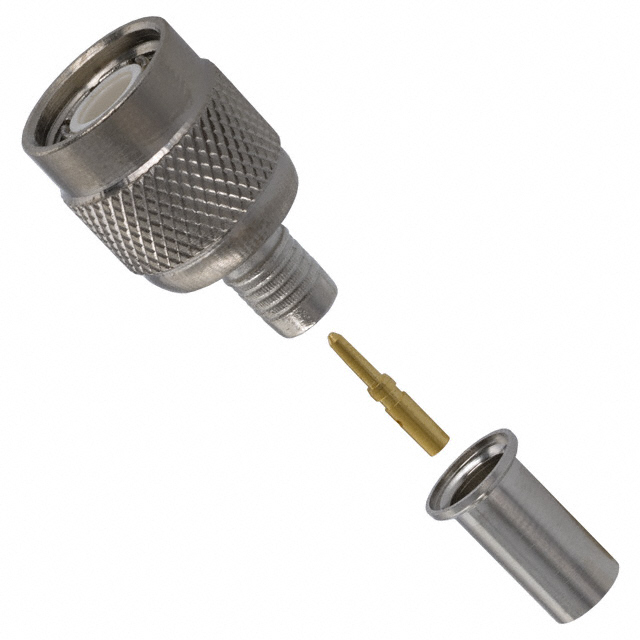

CONN TNC PLUG STR 50 OHM CRIMP
| Part | Body Material | Body Finish | Mating Cycles | Dielectric Material | Voltage Rating | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Cable Group | Cable Group | Connector Type | Center Contact Material | Contact Termination | Impedance | Mounting Type | Number of Ports | Housing Color | Connector Style | Frequency - Max [Max] | Shield Termination | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions AIM-Cambridge | Zinc | Nickel | 500 | Polymethylpentene (PMP) | 500 V | Gold | -55 C | 85 °C | 142 223 400 | RG-55 | Plug Male Pin | Brass | Crimp Solder | 50 Ohms | Free Hanging (In-Line) | 1 | Silver | TNC | 11 GHz | Crimp | Threaded |
 Cinch Connectivity Solutions AIM-Cambridge | Zinc | Nickel | 500 | Polytetrafluoroethylene (PTFE) | 500 V | Gold | -55 C | 85 °C | RG-8X | Plug Male Pin | Brass | Crimp Solder | 50 Ohms | Free Hanging (In-Line) | 1 | Silver | TNC | 11 GHz | Crimp | Threaded |
