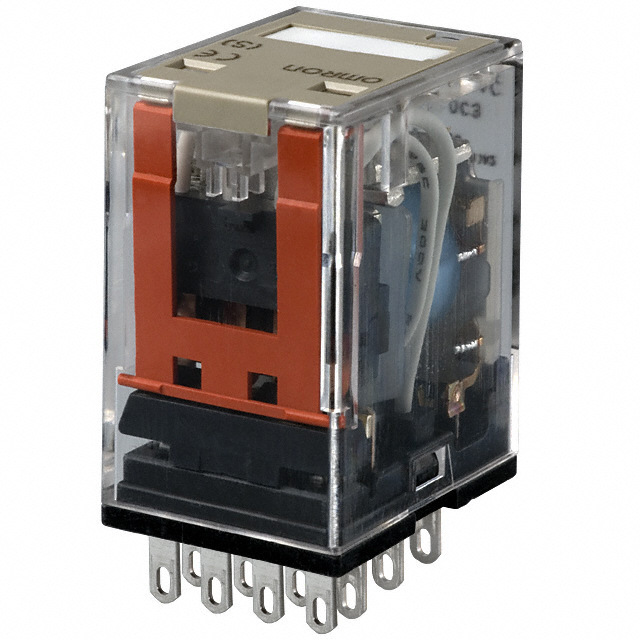

MY4N1 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE 4PDT 3A 12V
| Part | Relay Type | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Must Operate Voltage | Operate Time | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Coil Resistance | Coil Voltage | Must Release Voltage | Contact Material | Approval Agency | Contact Form | Contact Rating (Current) | Release Time | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | General Purpose | 125 VDC 250 VAC | 375 W 750 VA | 72.7 mA | Non Latching | 9.6 VDC | 20 ms | Socketable | 70 °C | -55 °C | Plug In | 165 Ohms | 12 VDC | 1.2 VDC | Gold (Au) Silver (Ag) | CE CSA UR VDE | 4PDT (4 Form C) | 3 A | 20 ms | Diode Lighted Indicator Reverse Coil Polarity |
 Omron Electronics Inc-EMC Div | General Purpose | 125 VDC 250 VAC | 375 W 750 VA | 36.3 mA | Non Latching | 19.2 VDC | 20 ms | Socketable | 70 °C | -55 °C | Plug In | 662 Ohms | 24 VDC | 2.4 VDC | Gold (Au) Silver (Ag) | CE CSA UR VDE | 4PDT (4 Form C) | 3 A | 20 ms | Lighted Indicator Reverse Coil Polarity |
