RJSAE538 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN MOD JACK 8P8C R/A SHIELDED
| Part | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Features | Mounting Type | Tab Direction | Number of Rows [custom] | Contact Finish | Termination | Shielding | Number of Ports | LED Color | Connector Type | Orientation | Number of Positions/Contacts | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

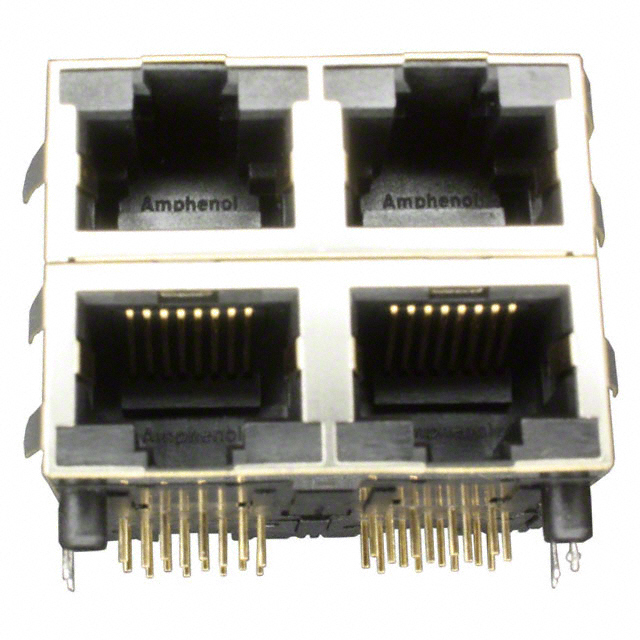

 Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | -55 C | 85 °C | Thermoplastic | Board Lock | Through Hole | Up and Down | 2 | Gold | Solder | EMI Finger Shielded | 4 | Does Not Contain LED | Jack | 90 ° | 8p8c (RJ45 Ethernet) | Phosphor Bronze |

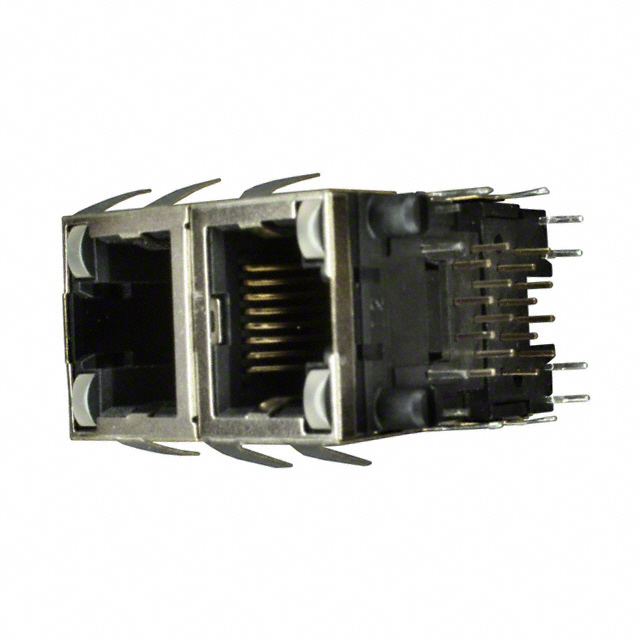

 Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | -55 C | 85 °C | Thermoplastic | Board Lock | Through Hole | Up and Down | 2 | Gold | Solder | EMI Finger Shielded | 2 | Green Red | Jack | 90 ° | 8p8c (RJ45 Ethernet) | Phosphor Bronze |

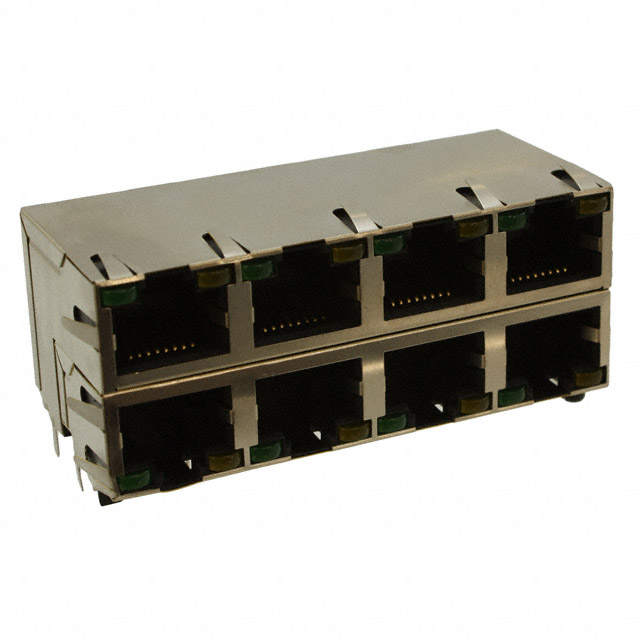

 Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | -55 C | 85 °C | Thermoplastic | Board Lock | Through Hole | Up and Down | 2 | Gold | Solder | EMI Finger Shielded | 8 | Green - Yellow | Jack | 90 ° | 8p8c (RJ45 Ethernet) | Phosphor Bronze |
 Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | -55 C | 85 °C | Thermoplastic | Board Lock | Through Hole | Up and Down | 2 | Gold | Solder | EMI Finger Shielded | 2 | Green Red | Jack | 90 ° | 8p8c (RJ45 Ethernet) | Phosphor Bronze |
Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | -55 C | 85 °C | Thermoplastic | Board Lock | Through Hole | Up and Down | 2 | Gold | Solder | EMI Finger Shielded | 2 | Green | Jack | 90 ° | 8p8c (RJ45 Ethernet) | Phosphor Bronze |
