A3CJ-90A Series

Catalog

SWITCH PUSHBUTTON DPST 1A 125V

Part	Mechanical Life	Electrical Life	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Current Rating (Amps)	Switch Function	Panel Cutout Dimensions [diameter]	Mounting Type	Illumination Type, Color	Termination Style	Actuator Marking	Ingress Protection	Voltage Rating - AC	Type	Illumination Voltage (Nominal)	Voltage Rating - DC	Circuit

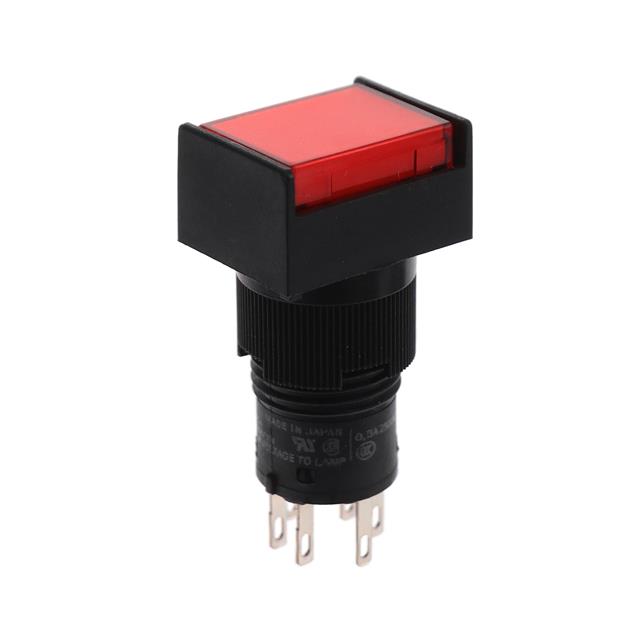

Omron Automation and Safety A3CJ-90A1-05ER	1000000 Cycles	100000 Cycles	Red	55 °C	-10 °C	Button Rectangular	1 A	Off-Mom On-Mom	12 mm	Panel Mount Front	LED Red	Solder Lug	No Marking	IP40	125 V	Illuminated Standard	5 VDC	30 V	DPST-NO/NC
Omron Automation and Safety A3CJ-90A1-05EG	1000000 Cycles	100000 Cycles	Green	55 °C	-10 °C	Button Rectangular	1 A	Off-Mom On-Mom	12 mm	Panel Mount Front	Green LED	Solder Lug	No Marking	IP40	125 V	Illuminated Standard	5 VDC	30 V	DPST-NO/NC

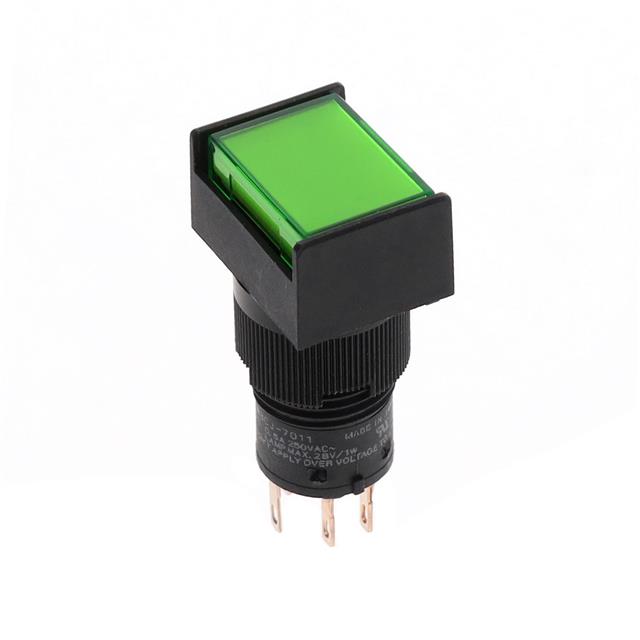

Omron Automation and Safety A3CJ-90A1-24EG	1000000 Cycles	100000 Cycles	Green	55 °C	-10 °C	Button Rectangular	1 A	Off-Mom On-Mom	12 mm	Panel Mount Front	Green LED	Solder Lug	No Marking	IP40	125 V	Illuminated Standard	24 V	30 V	DPST-NO/NC
Omron Automation and Safety A3CJ-90A1-05EY	1000000 Cycles	100000 Cycles	Yellow	55 °C	-10 °C	Button Rectangular	1 A	Off-Mom On-Mom	12 mm	Panel Mount Front	LED Yellow	Solder Lug	No Marking	IP40	125 V	Illuminated Standard	5 VDC	30 V	DPST-NO/NC
Omron Automation and Safety A3CJ-90A1-12EY	1000000 Cycles	100000 Cycles	Yellow	55 °C	-10 °C	Button Rectangular	1 A	Off-Mom On-Mom	12 mm	Panel Mount Front	LED Yellow	Solder Lug	No Marking	IP40	125 V	Illuminated Standard	12 VDC	30 V	DPST-NO/NC
