83804 Series
Manufacturer: Belden Inc.
Beta
⌘K

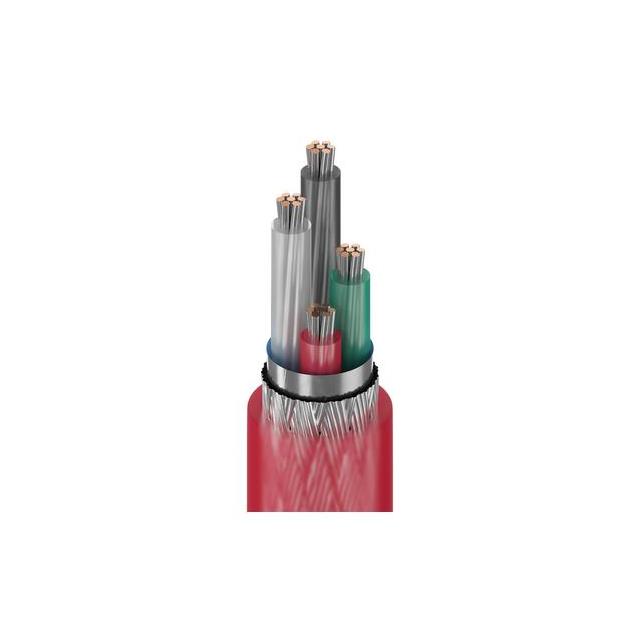

CABLE 4COND 12AWG RED SHLD
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Shield Type | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Jacket (Insulation) Material | Conductor Material | Length | Length | Cable Type | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | 7 | 20 AWG | UL Style CMP | Braid Foil | 4 | 0.017 " | 0.432 mm | Alarm Safety | Fluorinated Ethylene-Propylene (FEP) Plenum | Copper Tinned | 304.8 m | 1000 ft | Multi-Conductor | 300 VDC | -70 °C | 200 °C | Red | 0.359 in | 9.12 mm | 12 AWG | Fluorinated Ethylene-Propylene (FEP) |
Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | 7 | 20 AWG | UL Style CMP | Braid Foil | 4 | 0.017 " | 0.432 mm | Alarm Safety | Fluorinated Ethylene-Propylene (FEP) Plenum | Copper Tinned | 152.4 m | 500 ft | Multi-Conductor | 300 VDC | -70 °C | 200 °C | Red | 0.359 in | 9.12 mm | 12 AWG | Fluorinated Ethylene-Propylene (FEP) |
