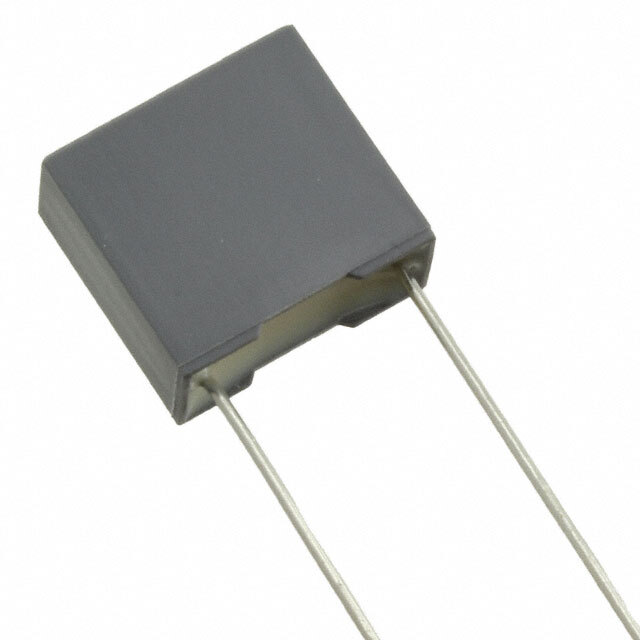

R73PI Series

Manufacturer: KEMET

Catalog

CAP FILM 0.033UF 5% 630VDC RAD

Part	Tolerance	Termination	Mounting Type	Lead Spacing	Lead Spacing	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Package / Case	Dielectric Material	Voltage Rating - AC	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max)
KEMET R73PI23304000J	5 %	PC Pins	Through Hole	15 mm	0.591 in	Automotive DC Filtering DC Link DV/DT High Frequency High Pulse Switching	0.575 in	14.6 mm	Radial	Polypropylene (PP) Metallized	300 V	0.335 in	8.5 mm	18 mm	0.709 in	-55 C	105 ░C	AEC-Q200	0.033 çF
KEMET R73PI21504000J	5 %	PC Pins	Through Hole	15 mm	0.591 in	Automotive DC Filtering DC Link DV/DT High Frequency High Pulse Switching			Radial	Polypropylene (PP) Metallized	300 V	0.236 "	6 mm	18 mm	0.709 in	-55 C	105 ░C	AEC-Q200	15000 pF	0.476 "	12.1 mm
