05S107 Series
Manufacturer: Rosenberger
Beta
⌘K

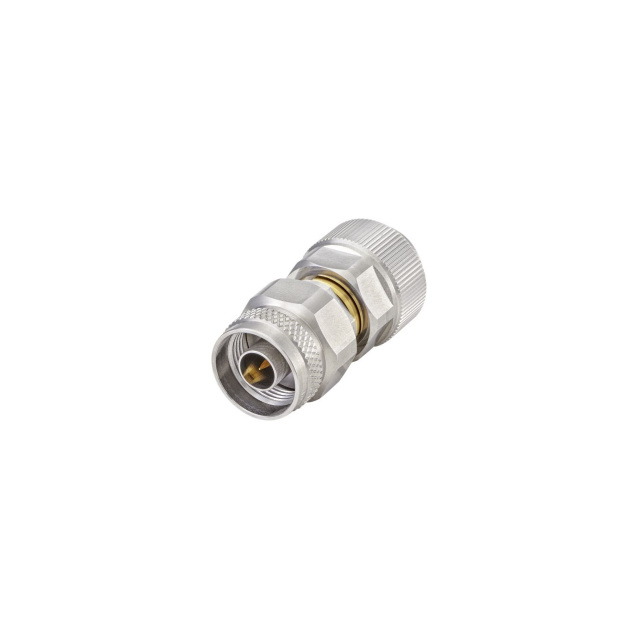

PRECISION N TYPE ADAPTER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Insertion Loss | Center Contact Material | Body Finish | Body Material | Mating Cycles | Center Gender | Impedance | Adapter Series | Mounting Type | Convert From (Adapter End) | Center Contact Plating | Frequency - Max [Max] | Style | Conversion Type | Convert To (Adapter End) | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 85 °C | -40 C | Polyphenylene Ether (PPE) | 0.34 dB | Beryllium Copper Brass | Gold | Beryllium Copper Stainless Steel | 5000 | Male to Non-Gendered | 50 Ohms | RJC-N to RJC-7 | Free Hanging (In-Line) | N Plug Male Pin | Gold | 18 GHz | Straight | Between Series | Non-Gendered | 7 mm |
