AT-42086 Series

Catalog

RF TRANS NPN 12V 8GHZ 86 PLASTIC

Part	Supplier Device Package	Gain [Min]	Gain [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Transistor Type	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce	Current - Collector (Ic) (Max) [Max]	Operating Temperature	Frequency - Transition

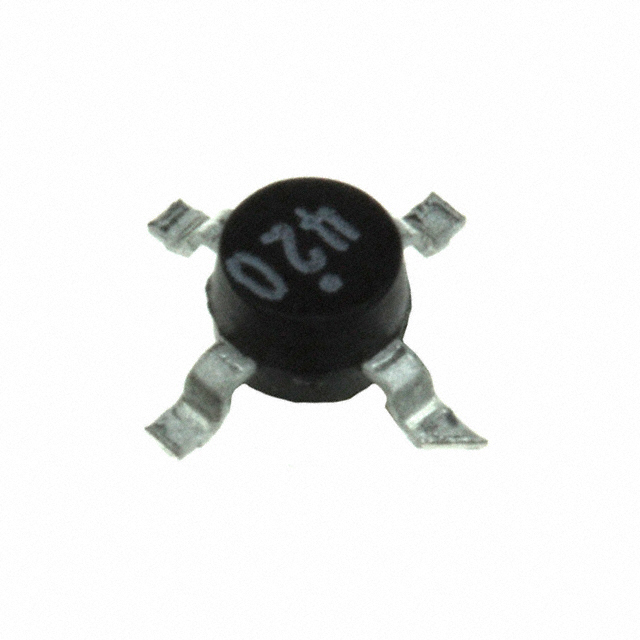

Broadcom Limited AT-42086-BLKG	86 Plastic	9 dB	13 dB	12 V	500 mW	NPN	Surface Mount	30	80 mA	150 °C	8 GHz
Broadcom Limited AT-42086-TR2G	86 Plastic	9 dB	13 dB	12 V	500 mW	NPN	Surface Mount	30	80 mA	150 °C	8 GHz

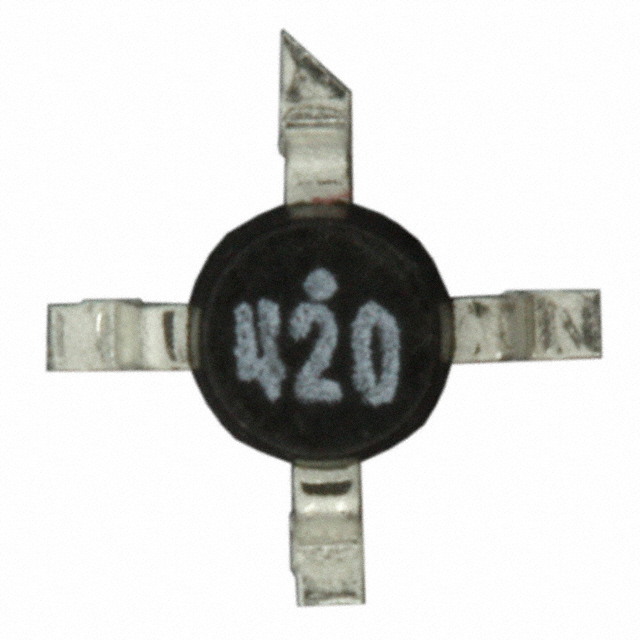

Broadcom Limited AT-42086-TR1G	86 Plastic	9 dB	13 dB	12 V	500 mW	NPN	Surface Mount	30	80 mA	150 °C	8 GHz
