1219/37C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

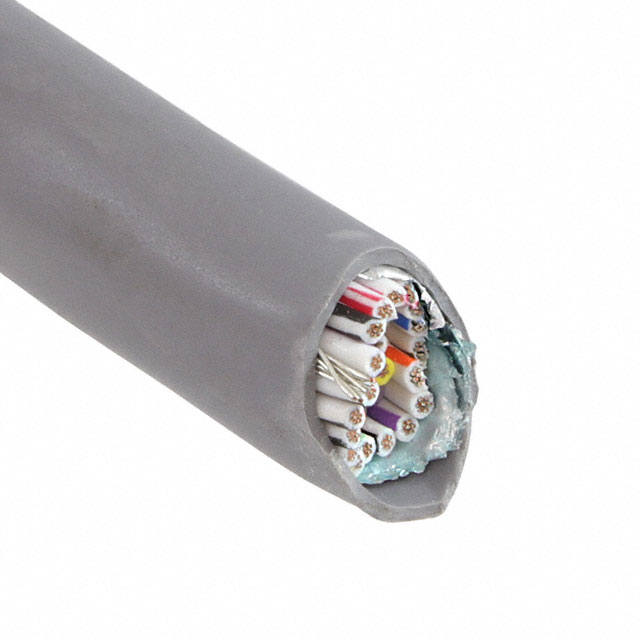

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 37 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.5 M
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Voltage | Conductor Insulation | Shield Type | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Wire Gauge | Jacket Color | Number of Conductors | Usage | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 0.376 in | 9.55 mm | 0.813 mm | 0.032 in | Drain Wire | 300 VDC | Poly-Vinyl Chloride (PVC) | Foil | Multi-Conductor | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 24 AWG | Slate | 37 | Communication Control | 100 ft | 30.5 m | 7 | 32 AWG | Copper Tinned | ||
ALPHA WIRE | 100 % | Aluminum | 0.376 in | 9.55 mm | 0.813 mm | 0.032 in | Drain Wire | 300 VDC | Poly-Vinyl Chloride (PVC) | Foil | Multi-Conductor | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 24 AWG | Slate | 37 | Communication Control | 7 | 32 AWG | Copper Tinned | 152.4 m | 500 ft |
