272R Series

Manufacturer: Serpac

Catalog

BOX ABS GRAY 6.88"L X 4.88"W

Part	Weight	Weight	Area (L x W)	Area (L x W)	Thickness	Thickness	Design	Material	Color	Material Flammability Rating	Ratings	Container Type	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features

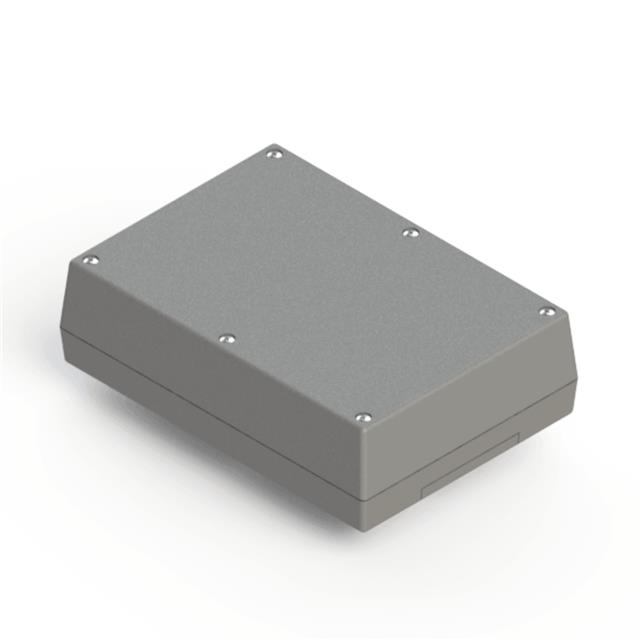

Serpac 272R,GY	0.441 lb	200.03 g	33.6 in²	217 cm²	2.54 mm	0.1 in	Hand Held Split Sides	ABS Plastic	Gray	UL94 HB	IP40 NEMA 1	Box	50.8 mm	2 in	6.88 in	123.95 mm	174.75 mm	4.88 in	9V Battery Compartment Front Access PCB Supports

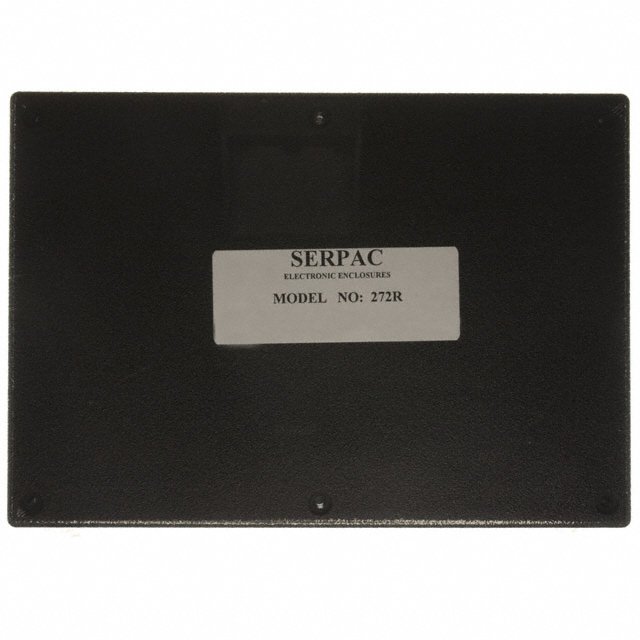

Serpac 272R,BK	0.441 lb	200.03 g	33.6 in²	217 cm²	2.54 mm	0.1 in	Hand Held Split Sides	ABS Plastic	Black	UL94 HB	IP40 NEMA 1	Box	50.8 mm	2 in	6.88 in	123.95 mm	174.75 mm	4.88 in	9V Battery Compartment Front Access PCB Supports

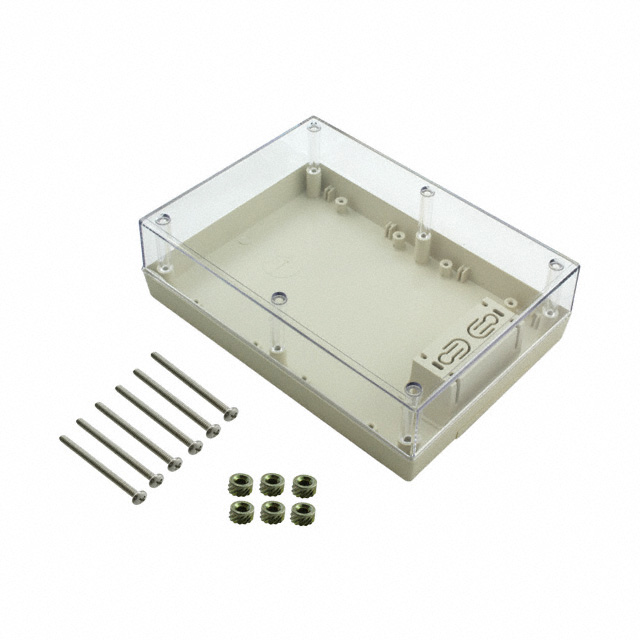

Serpac 272RC,AL	0.441 lb	200.03 g	33.6 in²	217 cm²	2.54 mm	0.1 in	Hand Held Split Sides	Plastic Polycarbonate			IP40 NEMA 1	Box	50.8 mm	2 in	6.88 in	123.95 mm	174.75 mm	4.88 in	9V Battery Compartment Front Access PCB Supports

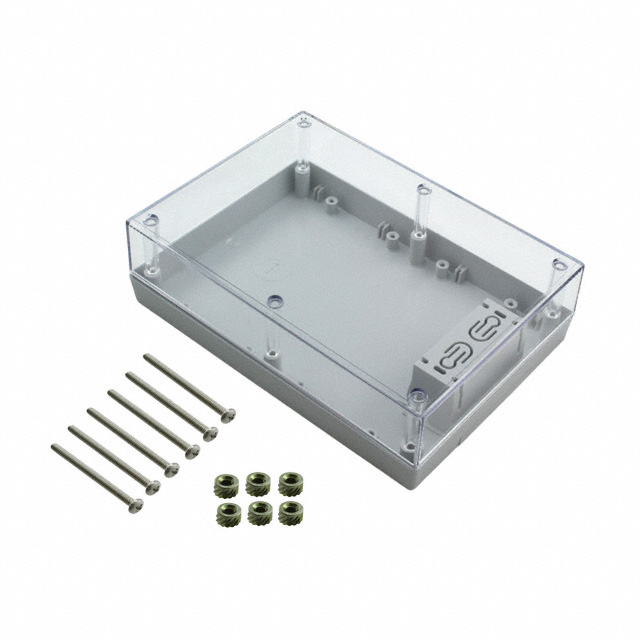

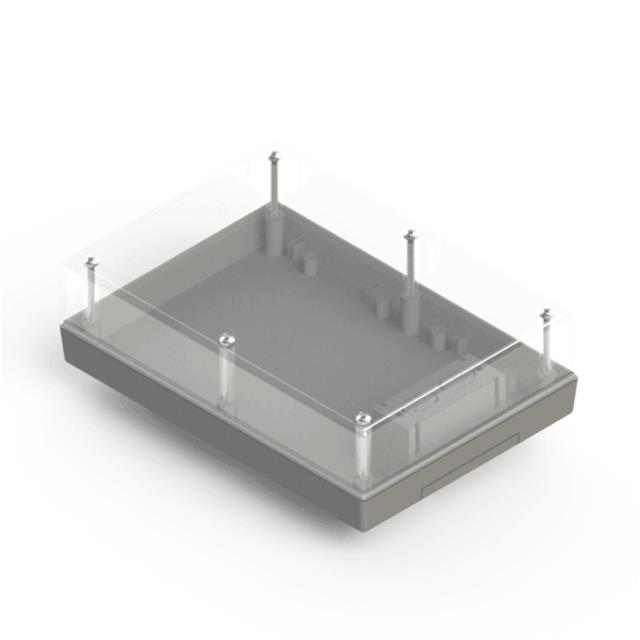

Serpac 272RC,GY	0.441 lb	200.03 g	33.6 in²	217 cm²	2.54 mm	0.1 in	Hand Held Split Sides	Plastic Polycarbonate	Clear Cover/Door Gray		IP40 NEMA 1	Box	50.8 mm	2 in	6.88 in	123.95 mm	174.75 mm	4.88 in	9V Battery Compartment Front Access PCB Supports

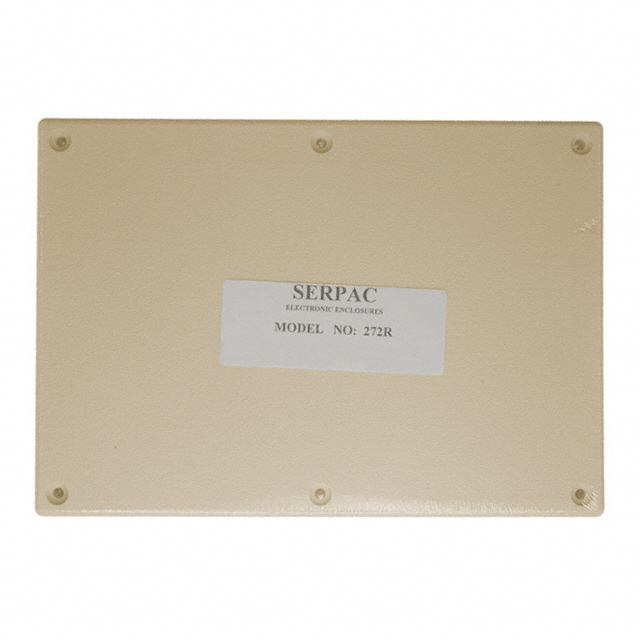

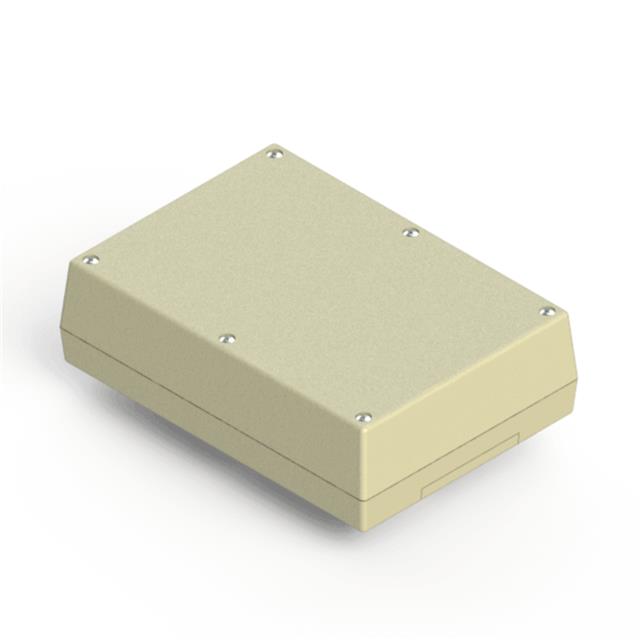

Serpac 272R,AL	0.441 lb	200.03 g	33.6 in²	217 cm²	2.54 mm	0.1 in	Hand Held Split Sides	ABS Plastic	Almond	UL94 HB	IP40 NEMA 1	Box	50.8 mm	2 in	6.88 in	123.95 mm	174.75 mm	4.88 in	9V Battery Compartment Front Access PCB Supports

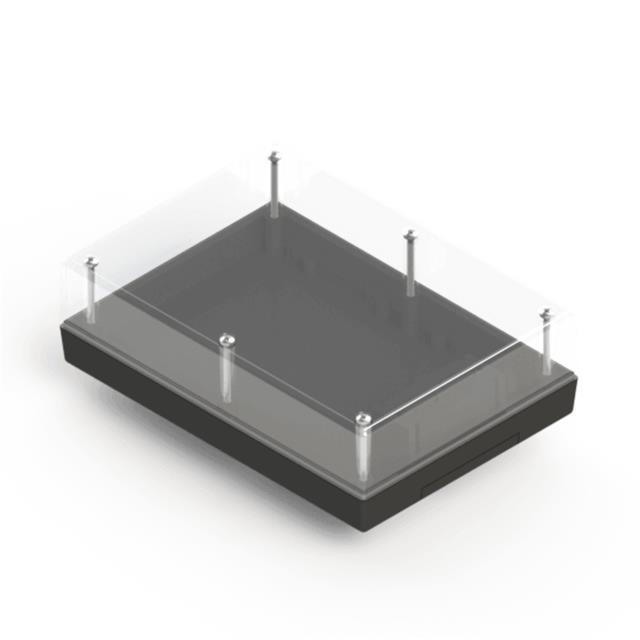

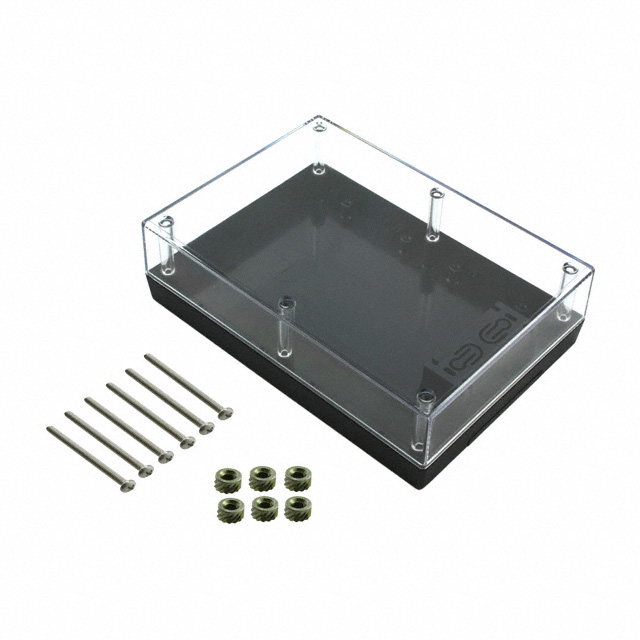

Serpac 272RC,BK	0.441 lb	200.03 g	33.6 in²	217 cm²	2.54 mm	0.1 in	Hand Held Split Sides	Plastic Polycarbonate	Black Clear Cover/Door		IP40 NEMA 1	Box	50.8 mm	2 in	6.88 in	123.95 mm	174.75 mm	4.88 in	9V Battery Compartment Front Access PCB Supports

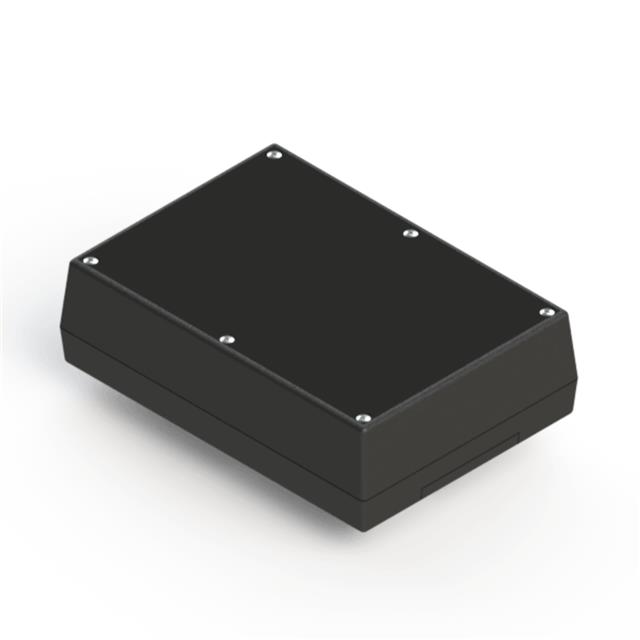

Serpac 272RI,BK	0.441 lb	200.03 g	33.6 in²	217 cm²	2.54 mm	0.1 in	Hand Held Split Sides	ABS Plastic	Black	UL94 HB	IP40 NEMA 1	Box	50.8 mm	2 in	6.88 in	123.95 mm	174.75 mm	4.88 in	9V Battery Compartment Front Access PCB Supports

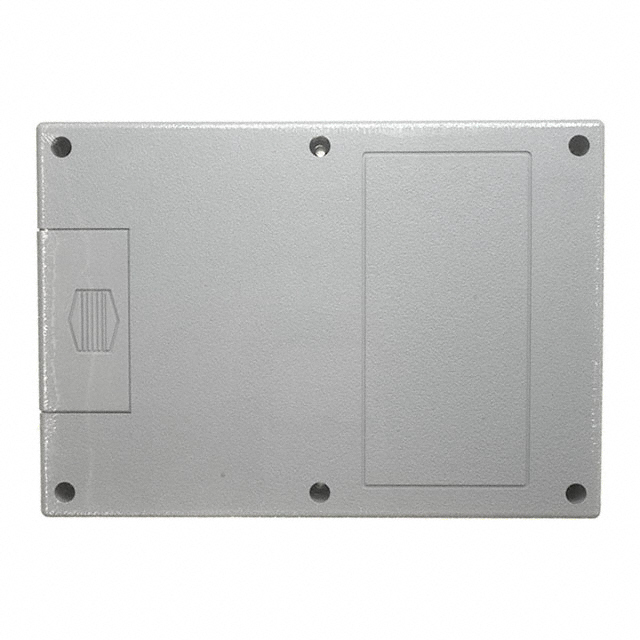

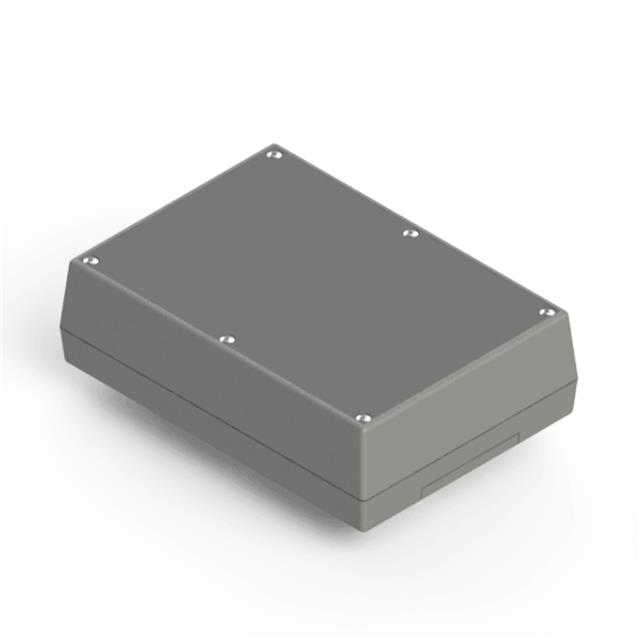

Serpac 272RI,GY	0.441 lb	200.03 g	33.6 in²	217 cm²	2.54 mm	0.1 in	Hand Held Split Sides	ABS Plastic	Gray	UL94 HB	IP40 NEMA 1	Box	50.8 mm	2 in	6.88 in	123.95 mm	174.75 mm	4.88 in	9V Battery Compartment Front Access PCB Supports

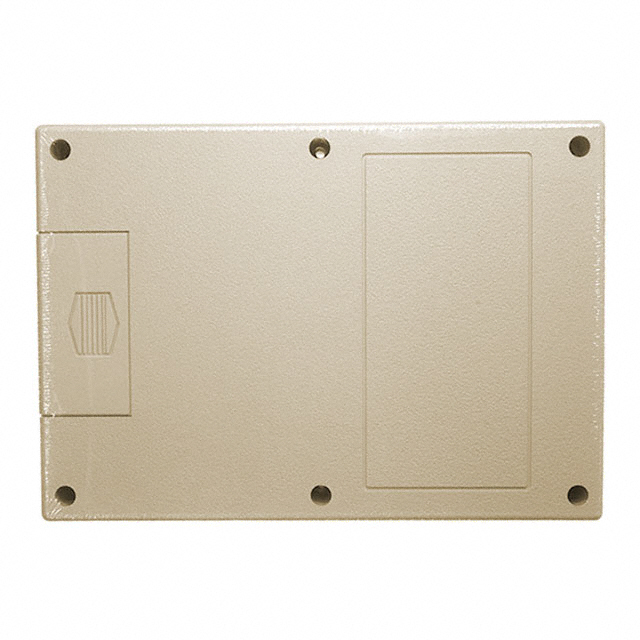

Serpac 272RI,AL	0.441 lb	200.03 g	33.6 in²	217 cm²	2.54 mm	0.1 in	Hand Held Split Sides	ABS Plastic	Almond	UL94 HB	IP40 NEMA 1	Box	50.8 mm	2 in	6.88 in	123.95 mm	174.75 mm	4.88 in	9V Battery Compartment Front Access PCB Supports
