PH1RB Series

Manufacturer: Adam Tech

Catalog

CONN HEADER R/A 15POS 2.54MM

Part	Contact Finish Thickness - Post	Insulation Color	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Contact Finish - Post	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Number of Positions	Material Flammability Rating	Insulation Material	Number of Rows	Contact Finish Thickness - Mating	Fastening Type	Voltage Rating	Termination	Contact Shape	Contact Length - Mating	Contact Length - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Shrouding	Contact Type	Insulation Height	Insulation Height	Current Rating (Amps)
Adam Tech PH1RB-15-UA	Flash	Black	All	-40 C	105 ░C	Header	Right Angle Through Hole	Gold	Gold	3.05 mm	0.12 in	15	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	1	Flash	Push-Pull	250 VAC	Solder	Square	5.97 mm	0.235 in	Brass	0.1 "	2.54 mm	Unshrouded	Male Pin	0.098 "	2.5 mm	3 A

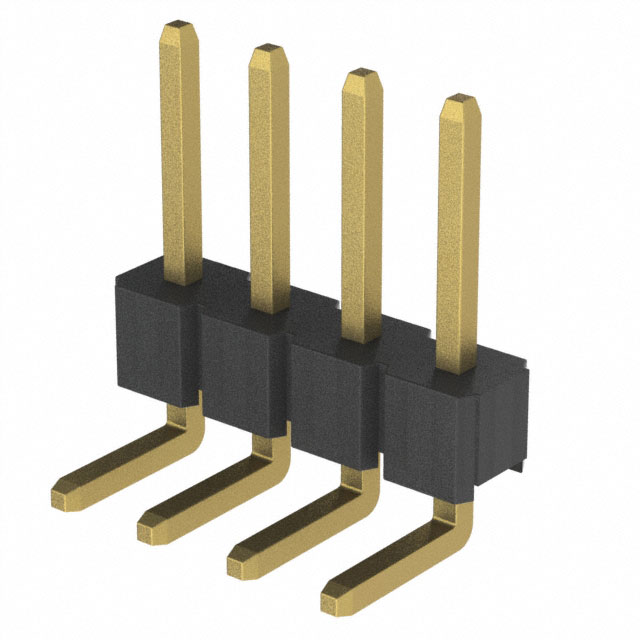

Adam Tech PH1RB-04-UA	Flash	Black	All	-40 C	105 ░C	Header	Right Angle Through Hole	Gold	Gold	3.05 mm	0.12 in	4	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	1	Flash	Push-Pull	250 VAC	Solder	Square	5.97 mm	0.235 in	Brass	0.1 "	2.54 mm	Unshrouded	Male Pin	0.098 "	2.5 mm	3 A
Adam Tech PH1RB-08-UA	Flash	Black	All	-40 C	105 ░C	Header	Right Angle Through Hole	Gold	Gold	3.05 mm	0.12 in	8	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	1	Flash	Push-Pull	250 VAC	Solder	Square	5.97 mm	0.235 in	Brass	0.1 "	2.54 mm	Unshrouded	Male Pin	0.098 "	2.5 mm	3 A

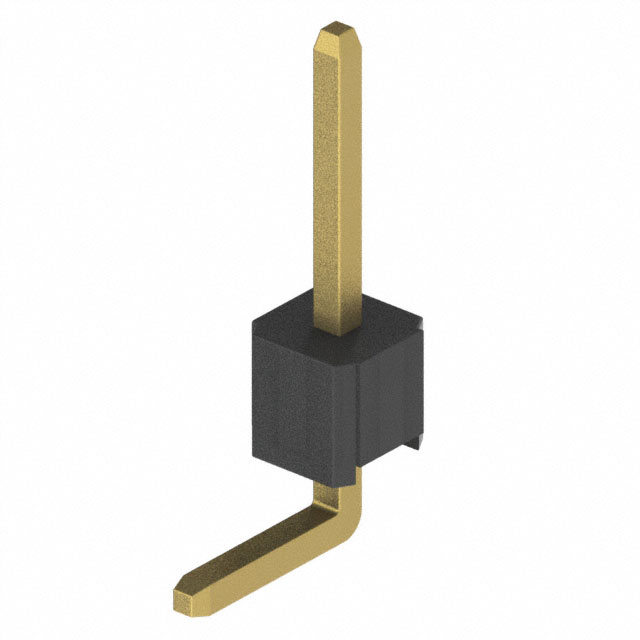

Adam Tech PH1RB-01-UA	Flash	Black	All	-40 C	105 ░C	Header	Right Angle Through Hole	Gold	Gold	3.05 mm	0.12 in	1	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	1	Flash	Push-Pull	250 VAC	Solder	Square	5.97 mm	0.235 in	Brass	0.1 "	2.54 mm	Unshrouded	Male Pin	0.098 "	2.5 mm	3 A

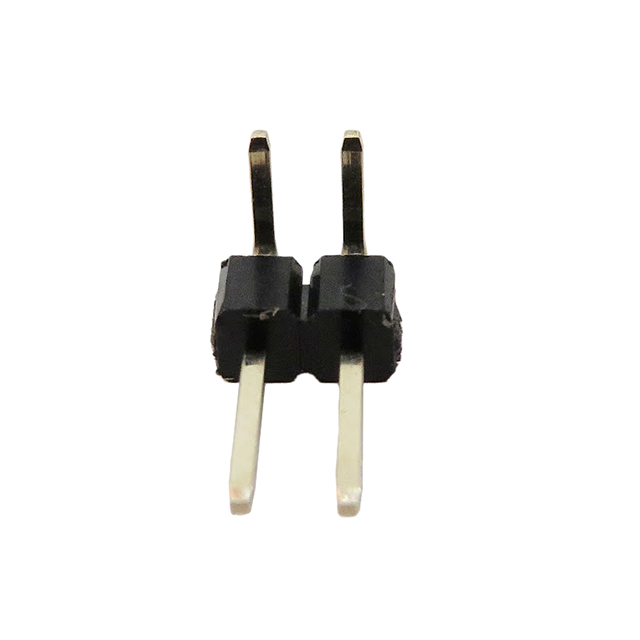

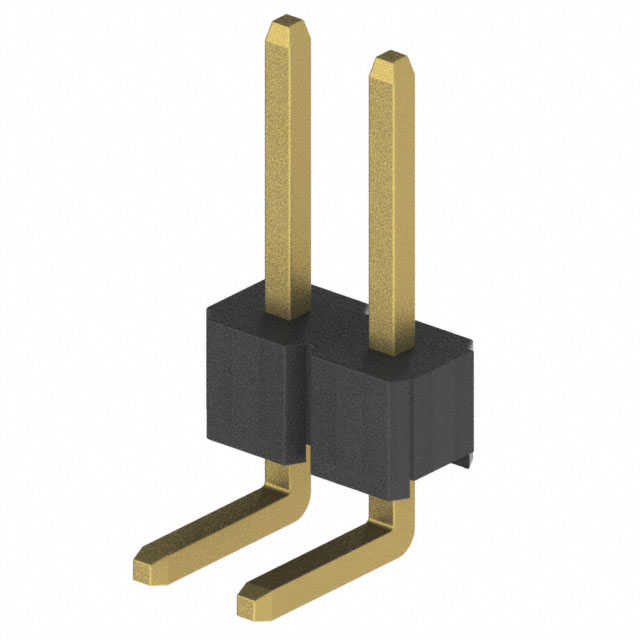

Adam Tech PH1RB-02-UA	Flash	Black	All	-40 C	105 ░C	Header	Right Angle Through Hole	Gold	Gold	3.05 mm	0.12 in	2	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	1	Flash	Push-Pull	250 VAC	Solder	Square	5.97 mm	0.235 in	Brass	0.1 "	2.54 mm	Unshrouded	Male Pin	0.098 "	2.5 mm	3 A
Adam Tech PH1RB-10-UA	Flash	Black	All	-40 C	105 ░C	Header	Right Angle Through Hole	Gold	Gold	3.05 mm	0.12 in	10	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	1	Flash	Push-Pull	250 VAC	Solder	Square	5.97 mm	0.235 in	Brass	0.1 "	2.54 mm	Unshrouded	Male Pin	0.098 "	2.5 mm	3 A
Adam Tech PH1RB-17-UA	Flash	Black	All	-40 C	105 ░C	Header	Right Angle Through Hole	Gold	Gold	3.05 mm	0.12 in		UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	1	Flash	Push-Pull	250 VAC	Solder	Square	5.97 mm	0.235 in	Brass	0.1 "	2.54 mm	Unshrouded	Male Pin	0.098 "	2.5 mm	3 A
Adam Tech PH1RB-13-UA	Flash	Black	All	-40 C	105 ░C	Header	Right Angle Through Hole	Gold	Gold	3.05 mm	0.12 in	13	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	1	Flash	Push-Pull	250 VAC	Solder	Square	5.97 mm	0.235 in	Brass	0.1 "	2.54 mm	Unshrouded	Male Pin	0.098 "	2.5 mm	3 A
Adam Tech PH1RB-12-UA	Flash	Black	All	-40 C	105 ░C	Header	Right Angle Through Hole	Gold	Gold	3.05 mm	0.12 in	12	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	1	Flash	Push-Pull	250 VAC	Solder	Square	5.97 mm	0.235 in	Brass	0.1 "	2.54 mm	Unshrouded	Male Pin	0.098 "	2.5 mm	3 A
Adam Tech PH1RB-09-UA	Flash	Black	All	-40 C	105 ░C	Header	Right Angle Through Hole	Gold	Gold	3.05 mm	0.12 in	9	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	1	Flash	Push-Pull	250 VAC	Solder	Square	5.97 mm	0.235 in	Brass	0.1 "	2.54 mm	Unshrouded	Male Pin	0.098 "	2.5 mm	3 A
